Informations

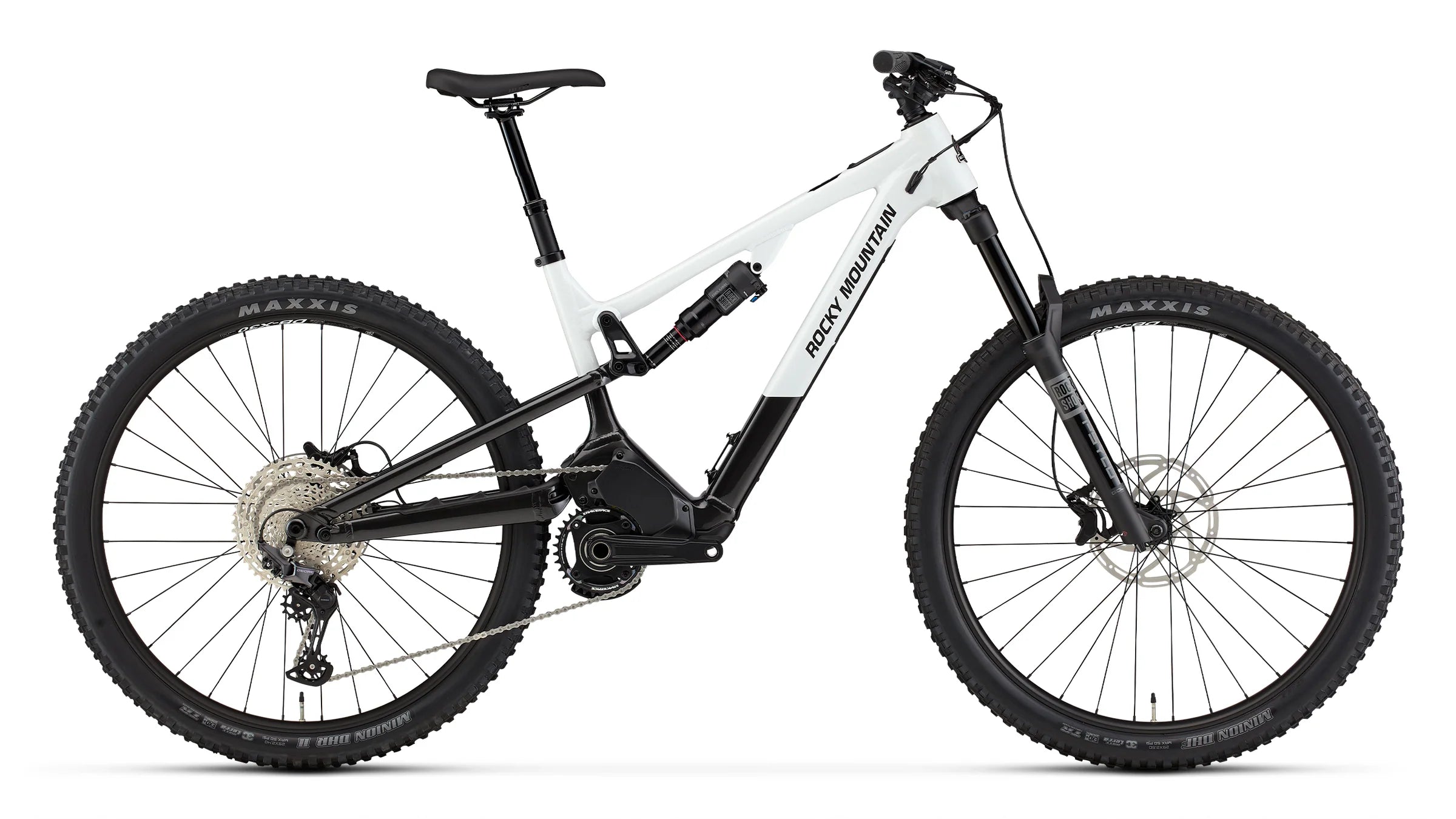

Rocky Mountain Instinct Powerplay SL Alloy 30
Spécifications
| Cadre | FORM™ Alloy | Integrated Display | Mid-High Pivot Smoothlink Suspension System | Press Fit BB | RIDE-4™ Adjustable Geometry | 145mm Travel | FORM™ Alloy Rear Triangle |
| Fourche | RockShox Psylo Gold RC 160mm | 27.5 = 37mm Offset | 29 = 42mm Offset |
| Débattement avant | 160 |
| Amortisseur | RockShox Deluxe Select | Linear XL Air Can | Sealed Bearing Eyelet | 25x8mm F Hardware | XS: 210x55mm | SM-XL: 230x60mm | Size-Specific tune in FAQ |
| Débattement arrière | 150 |
| Jeu de direction | FSA ZS56/66 Reach Adjust | 0mm Cups Installed | +/- 5mm Cups Included | Sealed Stainless 36°x45° Bearings | 30.2mm x 41mm x 6.5mm Upper | 40mm x 51.8mm x 8.0mm Lower | 1.5" Crown Race |
| Potence | Rocky Mountain 31.8 AM | 5° Rise | All Sizes = 40mm |
| Cintre | Rocky Mountain AM | 780mm Width | 38mm Rise | 9° Backsweep | 5° Upsweep | 31.8 Clamp |
| Poignées | Rocky Mountain Lock On Ergo |
| Freins | Tektro HD-M535 | Shimano Pad Compatible |
| Commande de vitesse | Shimano Deore 12spd |
| Dérailleur arrière | Shimano Deore 12spd |
| Pédalier et plateau | Rocky Mountain Microdrive 2PC | Race Face 34T SHI 12 Ring | 24mm Spindle | Crank Length: 165mm |
| Boitier de pédalier | Rocky Mountain Sealed - Shimano Compatible |
| Cassette | Shimano Deore 10-51T 12spd |
| Chaine | Shimano M6100 |
| Moyeux avant | Shimano TC500 | 15mm Boost |
| Moyeux arrière | Shimano TC500 Boost 148mm |
| Rayons | DT Swiss Champion 2.0 |
| Jantes | WTB ST i30 TCS 2.0 | 28H |
| Pneus | F: Maxxis Minion DHF 2.5 WT 3C MaxxTerra EXO+ Tubeless Ready | R: Maxxis Minion DHR II 2.4 WT 3C MaxxTerra EXO+ Tubeless Ready |
| Tige de selle | Tranz X +RAD1.0 Adjustable Dropper Post | 30mm Adjustment | Alloy Clamp Lever | 30.9mm | XS = 125mm | SM = 150mm | MD = 170mm | LG - XL = 200mm |
| Selle | WTB Volt 142 | Steel Rails |
| Système de transmission | Dyname S4 Lite Mountain Bike Drive | 250w Nominal Power | 700w Max Power | 75Nm | Rocky Mountain Micro Remote | Low RPM - High Efficiency class 1 eMTB System | Designed in Canada |
| Batterie | 480 Wh Removable Integrated Li-Ion |
| Commande de contrôle | 0 |
| Écran de contrôle | Rocky Mountain Jumbotron | Drive System Customization | Battery & Assist Level | Trip | Speed | Cadence | Top Tube Integration |
| Chargeur | Rocky Mountain Powerplay Charger | 2A | 48V | Higo Deep Socket Connector |
Géométrie
| S | M | L | XL | |
|---|---|---|---|---|
| Longueur du tube horizontal (mm) | 567 | 599 | 627 | 659 |
| Angle de direction (mm) | 63.5 | 63.5 | 63.5 | 63.5 |
| Hauteur de direction (mm) | 105 | 110 | 125 | 135 |
| Angle du tube de selle (mm) | 77 | 76.5 | 76.5 | 76.5 |
| Longueur du tube de selle (mm) | 365 | 410 | 440 | 470 |
| Longueur de la base arrière (mm) | 442 | 442 | 452 | 452 |
| Hauteur du boitier de pédalier (mm) | 38.8 | 38.8 | 38.7 | 38.8 |
| Reach (mm) | 425 | 450 | 475 | 505 |
| Stack (mm) | 618 | 622 | 636 | 645 |
| Hauteur de surplomb (mm) | 785 | 809 | 808 | 807 |
| Empattement (mm) | 1205 | 1232 | 1274 | 1308 |
