Information

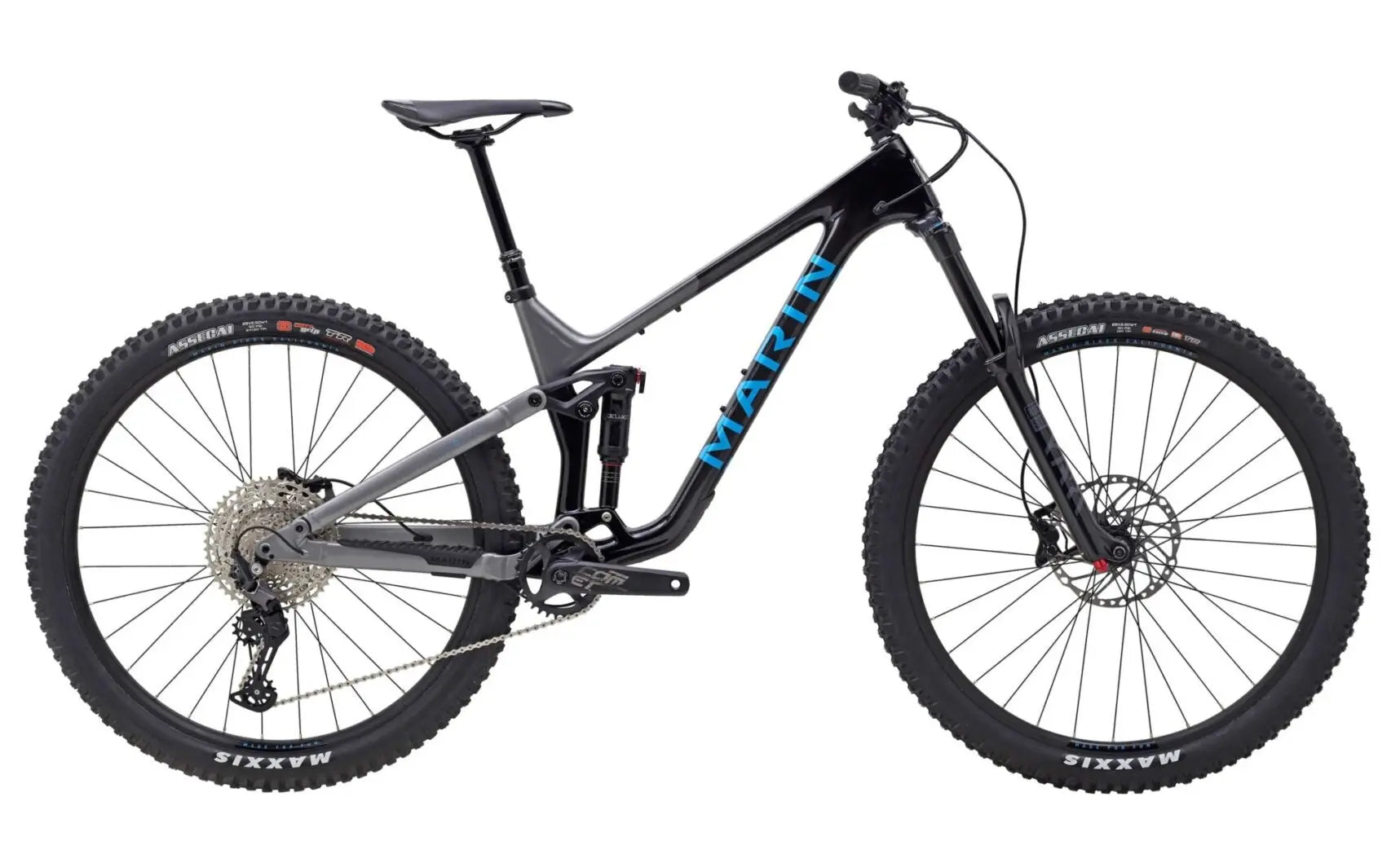

The Alpine Trail 29" is designed for enduro riders looking to maximize enjoyment on the most challenging descents.

SPECIFICATIONS

  • FRAME Brand new unidirectional carbon fiber front triangle, series 4 alloy rear end, 29-inch wheels, MultiTrac suspension platform with 150 mm travel, internal dropper post and rear derailleur hanger, disc brake mount on the chainstay, 148 x 12 mm thru-axle, 73 mm threaded BB with ISCG05 tabs
  • FORK RockShox Yari RC, 29 inches, 160 mm travel, air suspension, DebonAir, rebound and compression adjustment, fast black stanchions, Maxle Stealth 110 x 15 mm, 42 mm offset
  • REAR SHOCK RockShox Deluxe Select + RT, DebonAir air spring, 2-position compression adjustment, rebound adjustment, 205x65mm, Trunnion upper mount, M8x25mm lower mount
  • RIMS Marin, double-wall alloy, 29 mm internal width, sealed bearing, disc-specific, 32 holes, tubeless compatible
  • REAR HUB Shimano HB-MT410B, 148x12mm, Centerlock, Microspline freehub body
  • FRONT HUB Shimano HF-MT410B, 110x15mm, Centerlock
  • TIRES Front: Maxxis Assegai 29 x 2.5", MAXX TERRA, EXO+, tubeless compatible; Rear: Maxxis Assegai 29 x 2.5", MAXX GRIP, DoubleDown, tubeless compatible
  • REAR DERAILLEUR Shimano Deore, 12-speed, SGS
  • SHIFT LEVER Shimano Deore, 12-speed, SL6100-IR
  • CRANKSET FSA Comet Heavy Duty, modular 1x, direct mount 32-tooth chainring, MegaTooth technology, Boost spacing
  • BOTTOM BRACKET Mega EXO 73mm BSA
  • CHAIN KMC X-12 Silver and Black
  • CASSETTE Shimano, Deore M6100 12-speed, 10-51T
  • FRONT BRAKE Shimano BR-MT420, 4-piston hydraulic disc, 203 mm rotor
  • REAR BRAKE Shimano BR-MT420, 4-piston hydraulic disc, 180 mm rotor
  • BRAKE LEVERS Shimano BL-M4100 hydraulic, I-Spec EV compatible
  • HANDLEBAR Marin Mini-Riser, double-thickness 6061 aluminum, 780 mm width, 28 mm rise, 5° upsweep, 9° backsweep
  • GRIPS Marin single-clamp lock-on
  • HEADSET FSA No. 57, sealed cartridge bearings, 1 1/8" x 1 1/2"
  • SEATPOST TranzX, YSP23JL, 1 remote, size S 125 mm travel, sizes M and L 150 mm travel, size XL 175 mm travel, 30.9 mm diameter
  • SADDLE Marin Speed Concept
