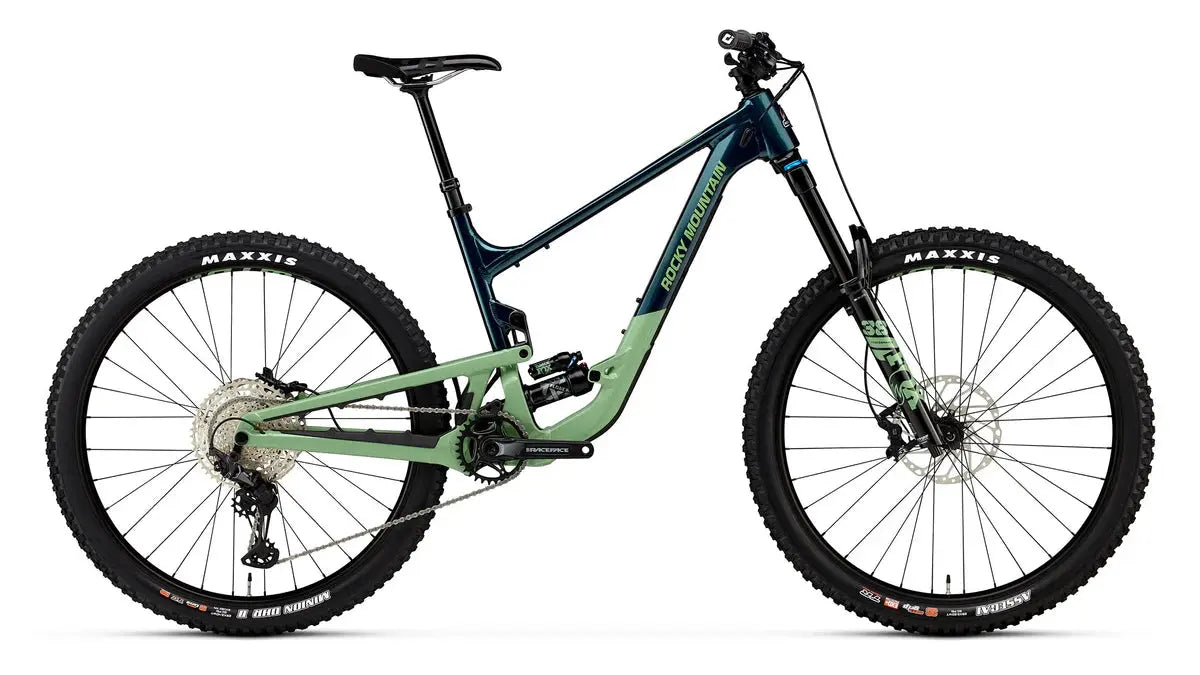

Altitude Alloy 50
The Altitude Alloy A50 is an enduro mountain bike designed to dominate steep and technical trails as well as demanding race stages. Thanks to the Altitude Alloy, this bike is built for speed, control, and durability. The Altitude Alloy combines modern suspension and adjustable geometry to deliver reliable performance when pushing your limits on tough terrain. With the Altitude Alloy, you can fully enjoy every ride, no matter the challenge.
Specifications
| Frame |
FORM™ Alloy | Full Sealed Cartridge Bearings | Threaded BB | Internal Cable Routing | 2-Bolt ISCG05 Tabs | RIDE-4™ Adjustable Geometry | 160mm Travel | FORM™ Alloy Rear Triangle |
| Fork |
Fox 38 Float EVOL GRIP Performance Series 170mm | 27.5 = 37mm Offset | 29 = 44mm Offset |
| Front Travel |
170 |
| Shock |
Fox Float X Performance | Sealed Bearing Eyelet | 40x10mm F Hardware | SM = 210x55mm | MD - LG - XL = 230x60mm | Size-Specific tune in FAQ |
| Rear Travel |
160 |
| Headset |
FSA ZS56/66 Reach Adjust | 0mm Cups Installed | +/- 5mm Cups Included | Sealed Stainless 36°x45° Bearings | 30.2mm x 41mm x 6.5mm Upper | 40mm x 51.8mm x 8.0mm Lower | 1.5" Crown Race |
| Stem |
Rocky Mountain 35 AM | 0° Rise | All Sizes = 40mm |
| Handlebar |
Rocky Mountain AM | 780mm Width | 38mm Rise | 9° Backsweep | 5° Upsweep | 35 Clamp |
| Handles |
ODI Elite Pro Lock On |
| Brakes |
Shimano SLX Trail 4 Piston | Metal Pads |
| Shifter |
Shimano SLX |
| Rear derailleur |
Shimano XT |
| Crankset and chainring |
Race Face Aeffect Cinch | 32T | 24mm Spindle | SM = 165mm | MD - XL = 170mm |
| Bottom bracket |
Shimano Threaded BBMT501-B |
| Cassette |
Shimano Deore 10-51T 12spd |
| Chain |
Shimano M6100 |
| Front hubs |
Novatec D791SB Sealed Boost 15mm |
| Rear hubs |
Shimano XT Boost 148mm |
| Spokes |
DT Swiss Competition 2.0/1.8/2.0 |
| Rims |
WTB ST i30 TOUGH TCS 2.0 | 32H | Tubeless Set Up | Sealant Incl |
| Tires |
Maxxis Assegai 2.5 WT 3C MaxxGrip EXO+ Tubeless Ready | Maxxis Minion DHR II 2.4 WT 3C MaxxTerra DD Tubeless Ready | Tubeless Set Up | Sealant Incl |
| Seatpost |
X Fusion Manic Composite 30.9mm | SM = 150mm | MD = 170mm | LG - XL = 200mm |
| Saddle |
WTB Solano Fusion Form 142 | Cromoly Rails |
| Weight |
This information is not yet available. We will update the weight of this model as soon as possible. |
| Notes |
We strive to ensure the accuracy of the information, but we reserve the right to update specifications and prices without notice. |
Geometry
|
MD |
LG |
XL |
| Top tube length (mm) |
584 |
610 |
642 |
| Head tube angle (mm) |
62.9 |
62.9 |
62.9 |
| Head tube height (mm) |
105 |
115 |
130 |
| Seat tube angle (mm) |
77 |
77 |
77 |
| Seat tube length (mm) |
410 |
440 |
470 |
| Rear chainstay length (mm) |
440 |
450 |
450 |
| Bottom bracket height (mm) |
29 |
29 |
29 |
| Reach (mm) |
450 |
475 |
505 |
| Stack (mm) |
630 |
639 |
653 |
| Stack height (mm) |
791 |
797 |
808 |
| Wheelbase (mm) |
1243 |
1282 |
1319 |
