Information
Smart assistance

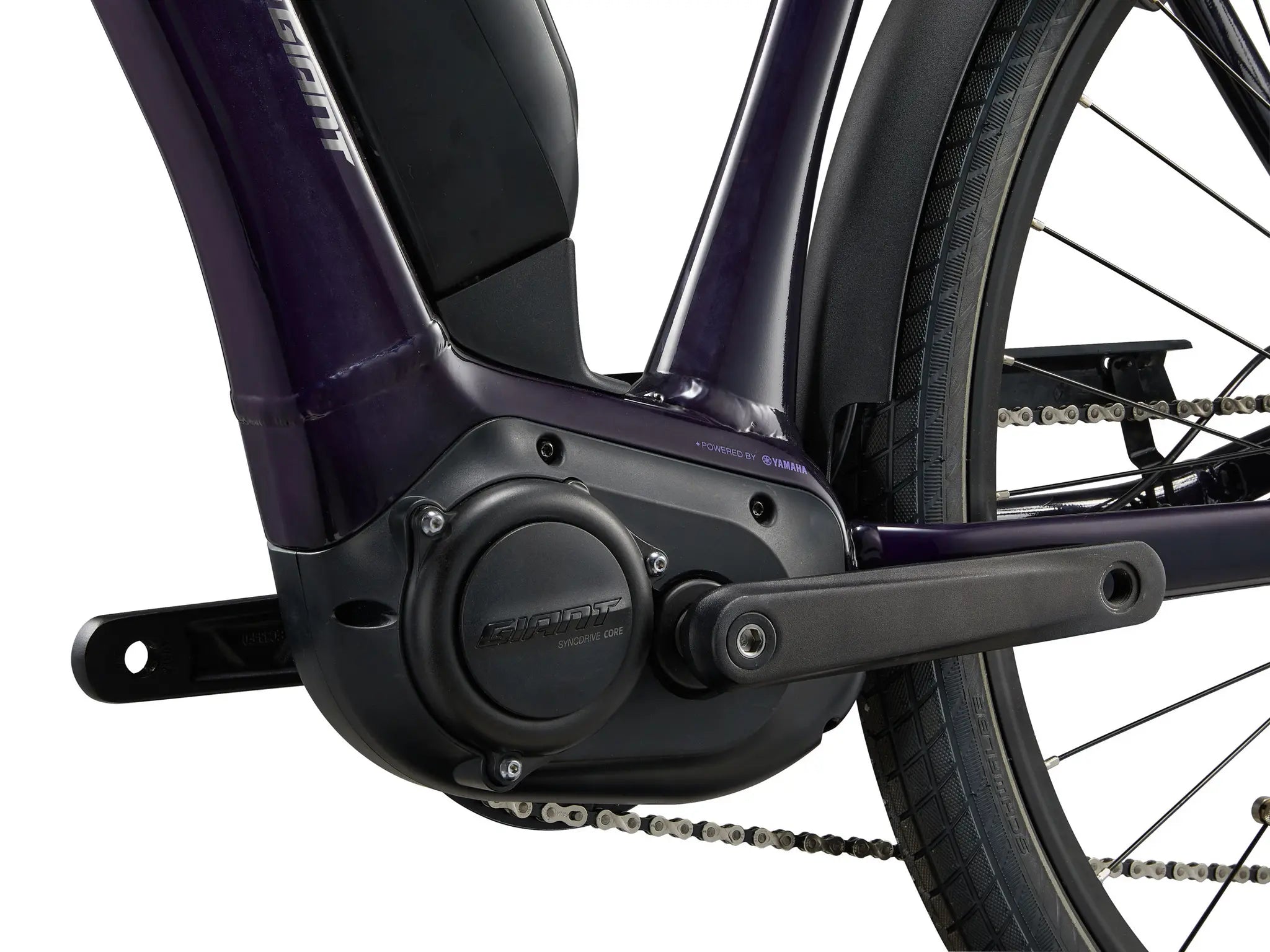

The new SyncDrive Core 2 55 Nm motor features Smart Assist mode, which uses sensors to continuously determine and provide the optimal assistance level by automatically adjusting output power.
Comfort and control
A through-frame with a 63 mm suspension fork, suspension seatpost, powerful disc brakes, and extra-wide 55 mm tires combine for smooth confidence and control on a variety of surfaces and road conditions.
Color display
RideDash Evo (on some models) on the handlebar/stem area allows easy viewing of riding data, including speed, distance, battery level, and navigation.
How far can I travel on a single battery charge?

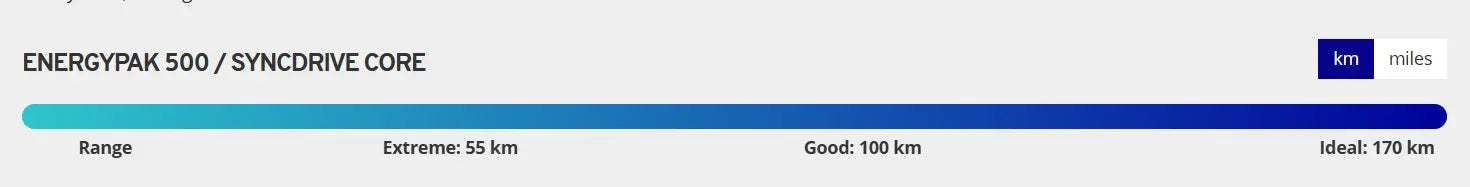

Battery range can vary significantly depending on several factors, including the total weight of the rider and their load, wind resistance, tire pressure and profile, terrain and elevation, road or trail conditions, outside temperature, electric bike maintenance, and battery condition. (See chart in photo)
Specifications
| Motor | SyncDrive Core2, 55Nm, powered by Yamaha |
| Control | RideControl Ergo, 5 power levels plus Smart Assist auto mode |

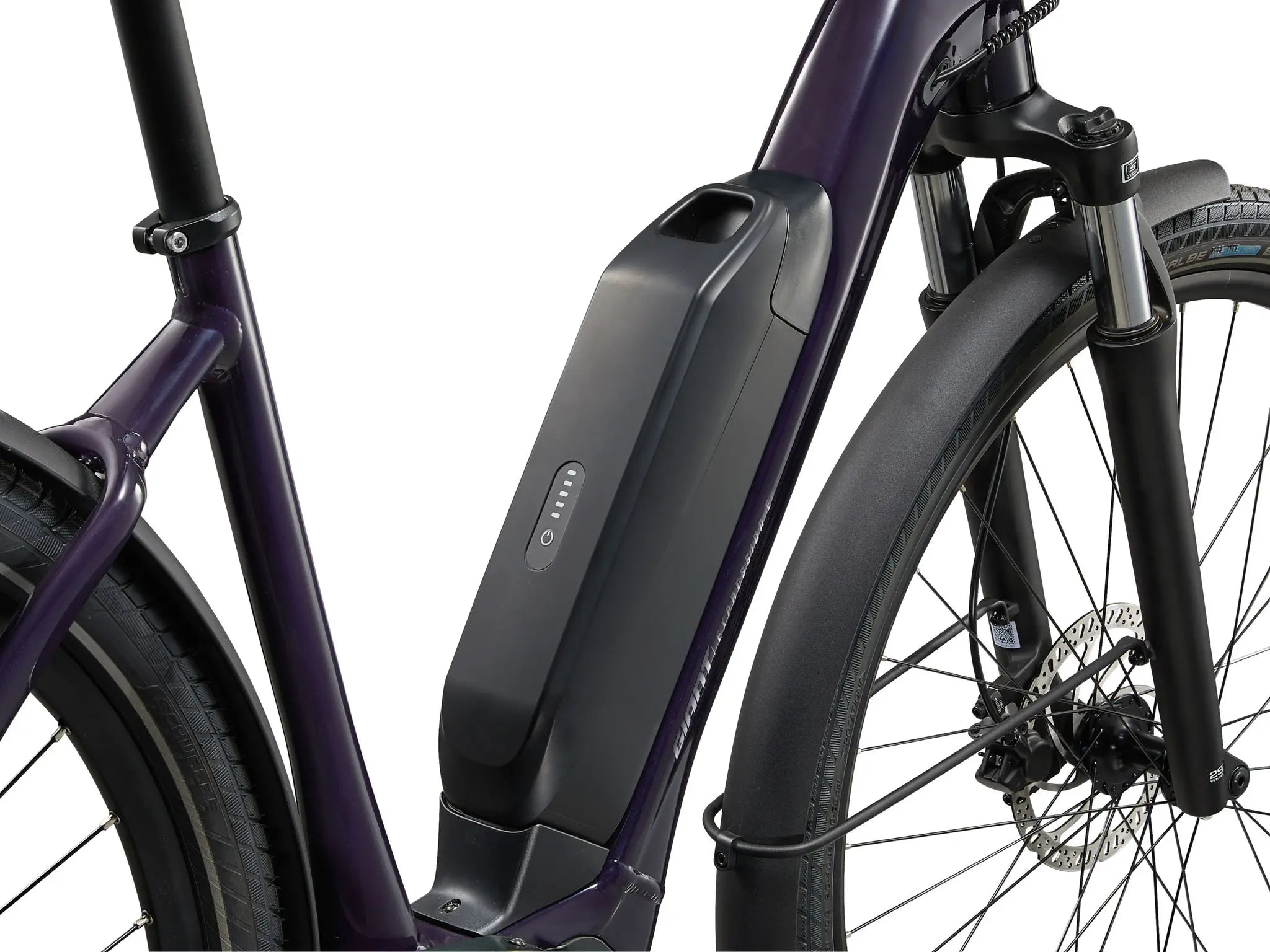

| Battery | EnergyPak 500Wh, CO2 neutral production |
| Charger | EnergyPak 4A smart charger compact, 60% in 2:30h |

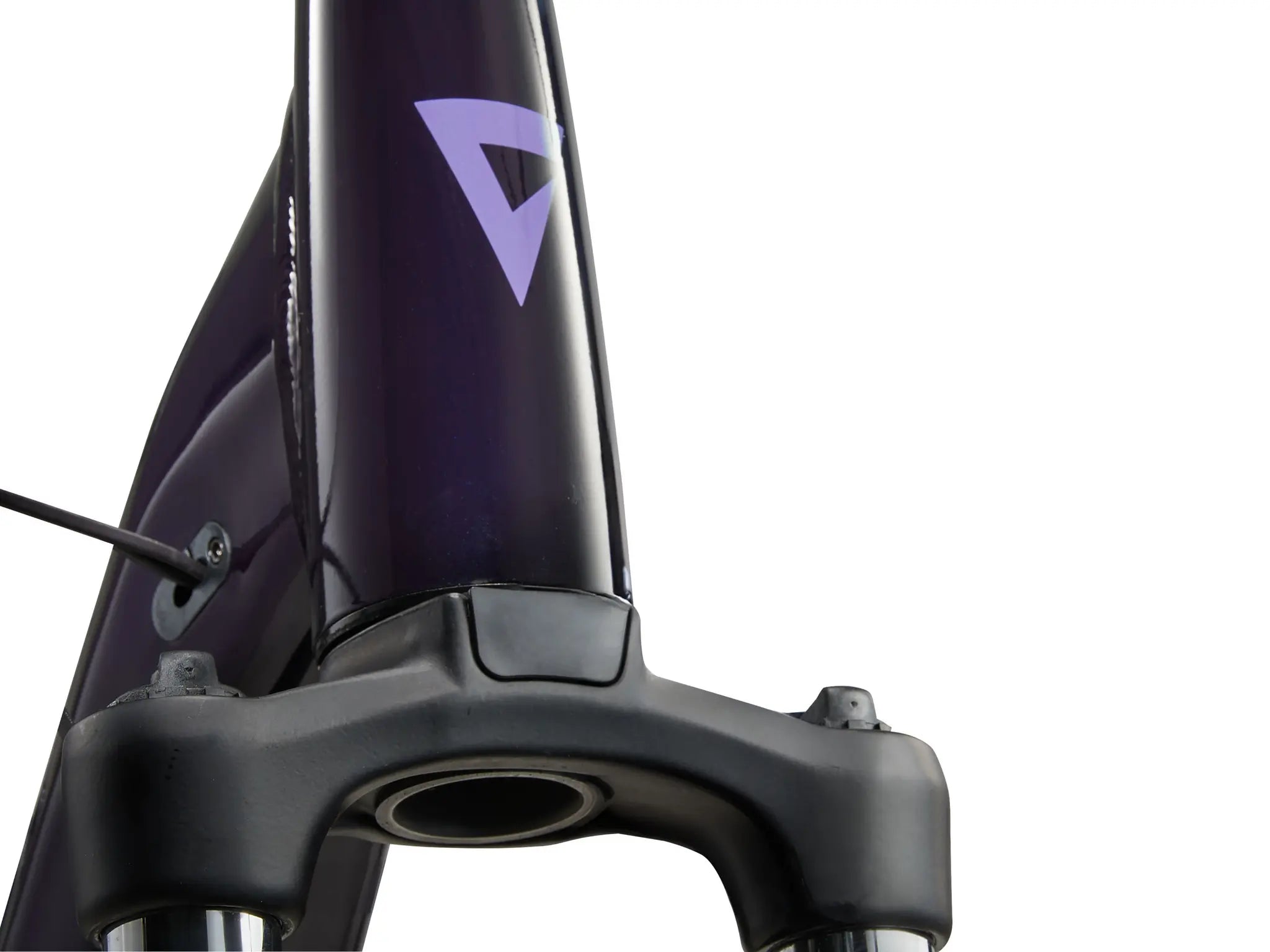

| Frame | ALUXX-grade aluminum, 1.125" head tube, semi-integrated battery, KSA18 kickstand mount |
| Fork | SR Suntour Mobie A32 DC coil spring, 63mm, 15x100mm thru-axle |
| Handlebar | Alloy, mid-rise, 31.8mm |
| Grips | Giant Comfort Ergo Microtech Plus lock-on |
| Stem | Alloy angle adjustable |
| Seatpost | Giant forged alloy, 30.9mm, 2-bolt micro adjustable |
| Saddle | Selle Royal Vivo Essenza Plus |
| Pedals | Platform |
| Shift levers | Shimano Altus, 1x9 |
| Rear derailleur | Shimano Alivio RD-M3100 |
| Brakes | Tektro HD-M275, hydraulic Tektro TR-52 rotors, [F] 180mm, [R] 160mm |
| Brake levers | Tektro HD-M275 |

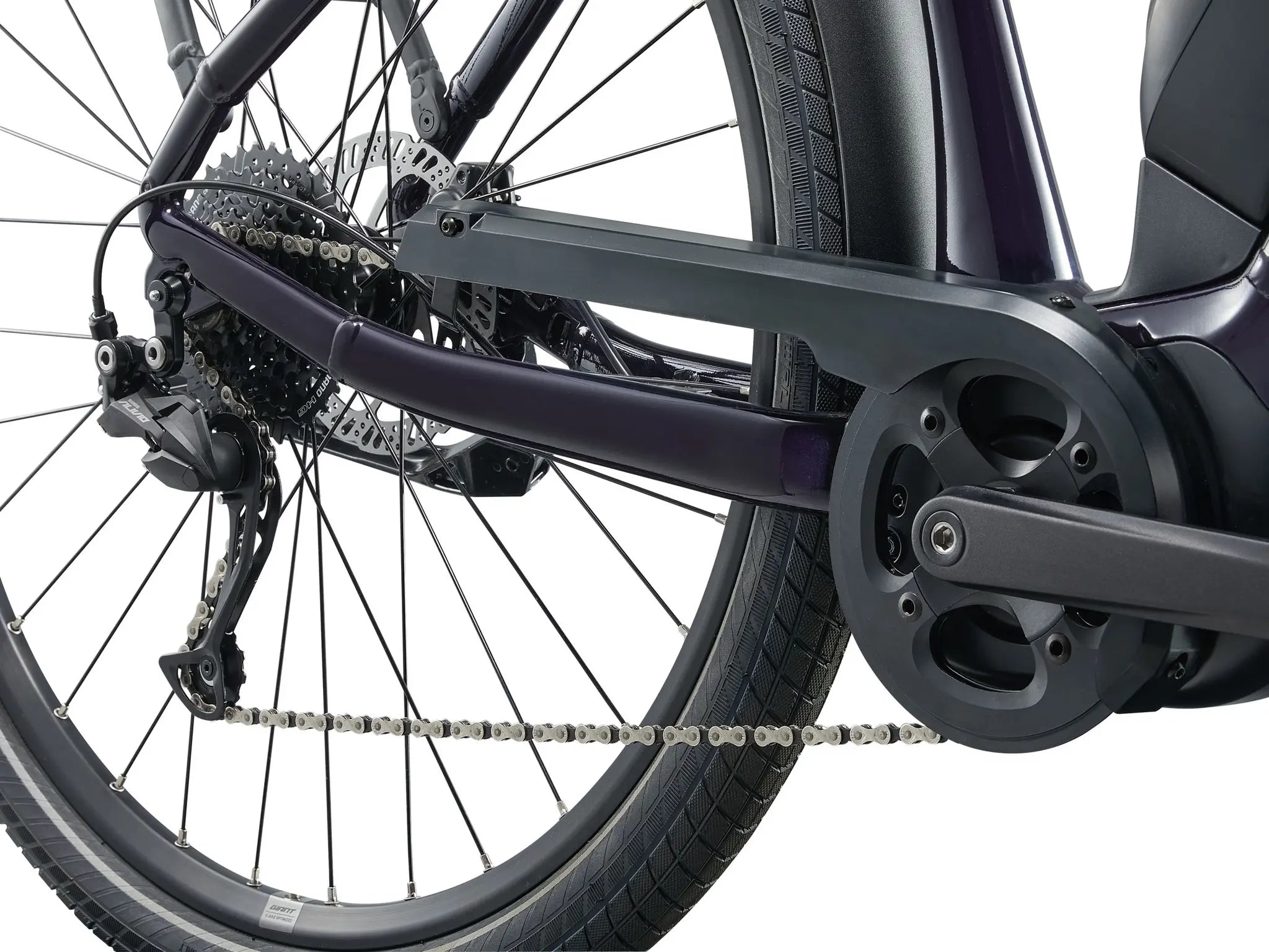

| Cassette | Shimano Alivio, 9-speed, 11x36 |
| Chain | KMC e.9 Sport, e-bike optimized |
| Crankset | forged alloy, 38t |
| Rims | Giant GX03V, alloy, 700c |
| Hubs | [F] Shimano HB-TC500 100x15mm thru-axle, [R] Shimano FH-QC300-HM 135mm QR |
| Spokes | stainless |
| Tires | Schwalbe Big Ben, 622x55, RaceGuard, ADDIX, wire bead with Reflective |
| Extras | fenders, KSA18 direct mount kickstand, MIK HD rack system - bag & basket compatible |
