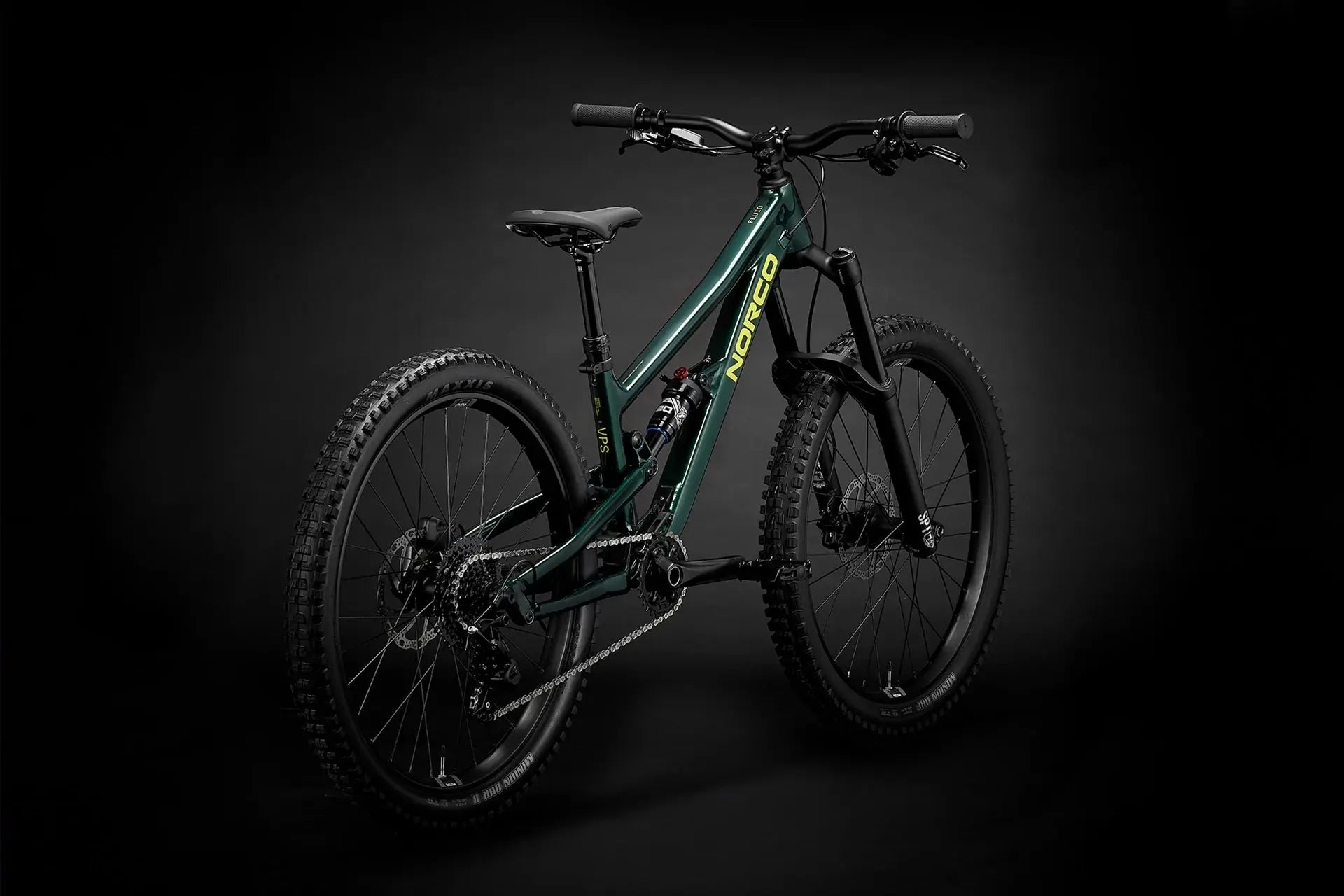

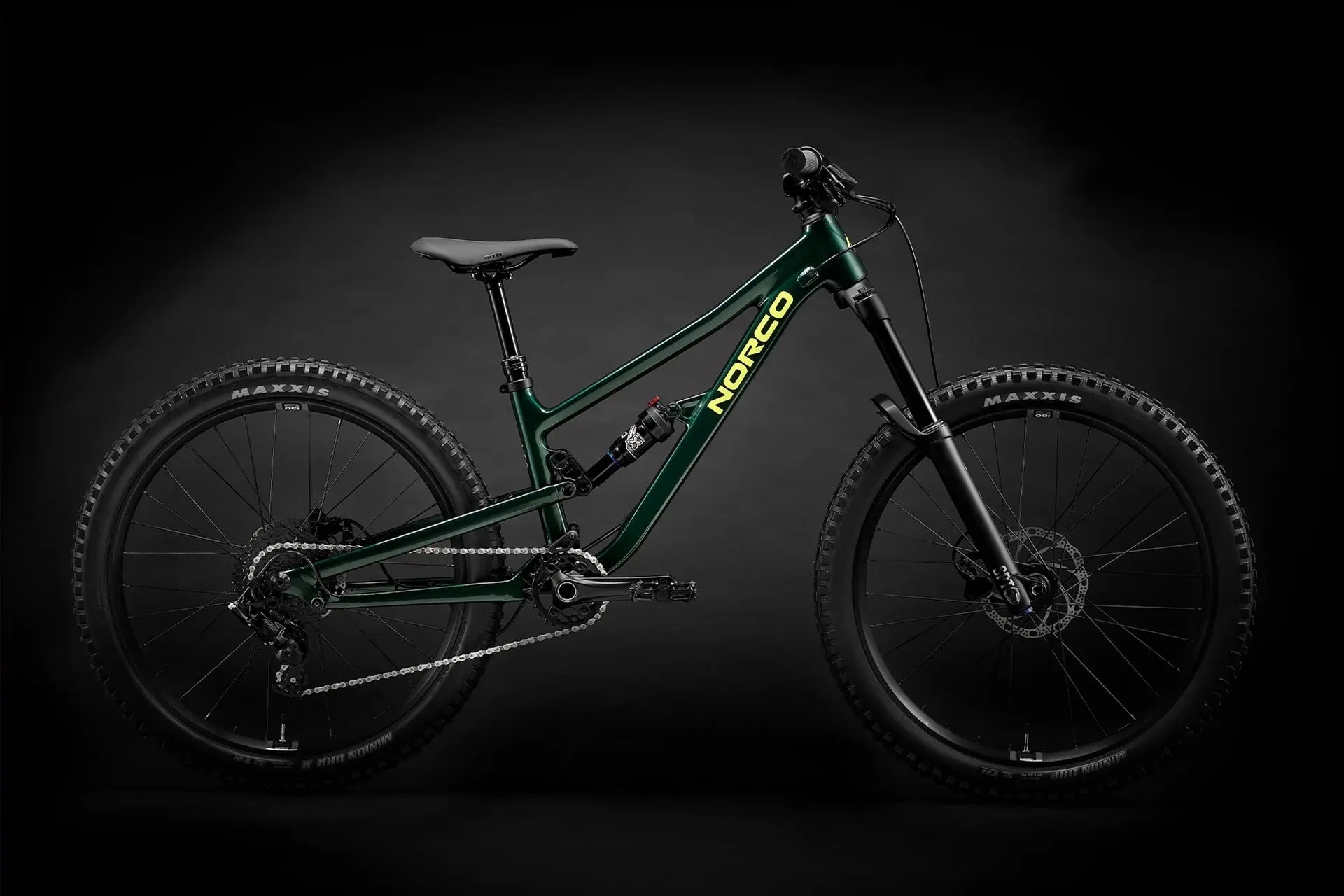

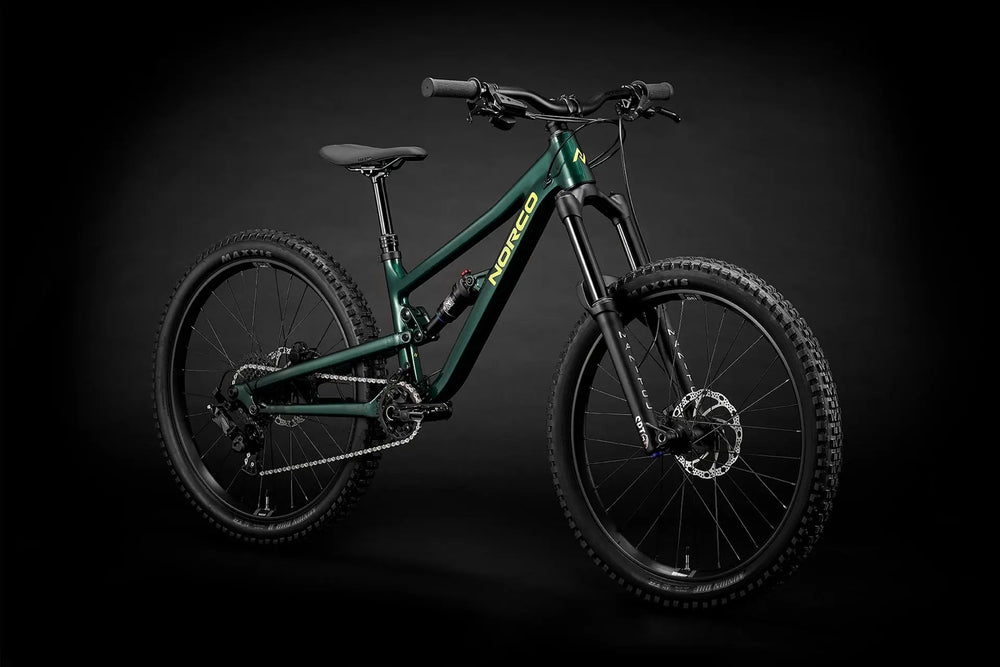

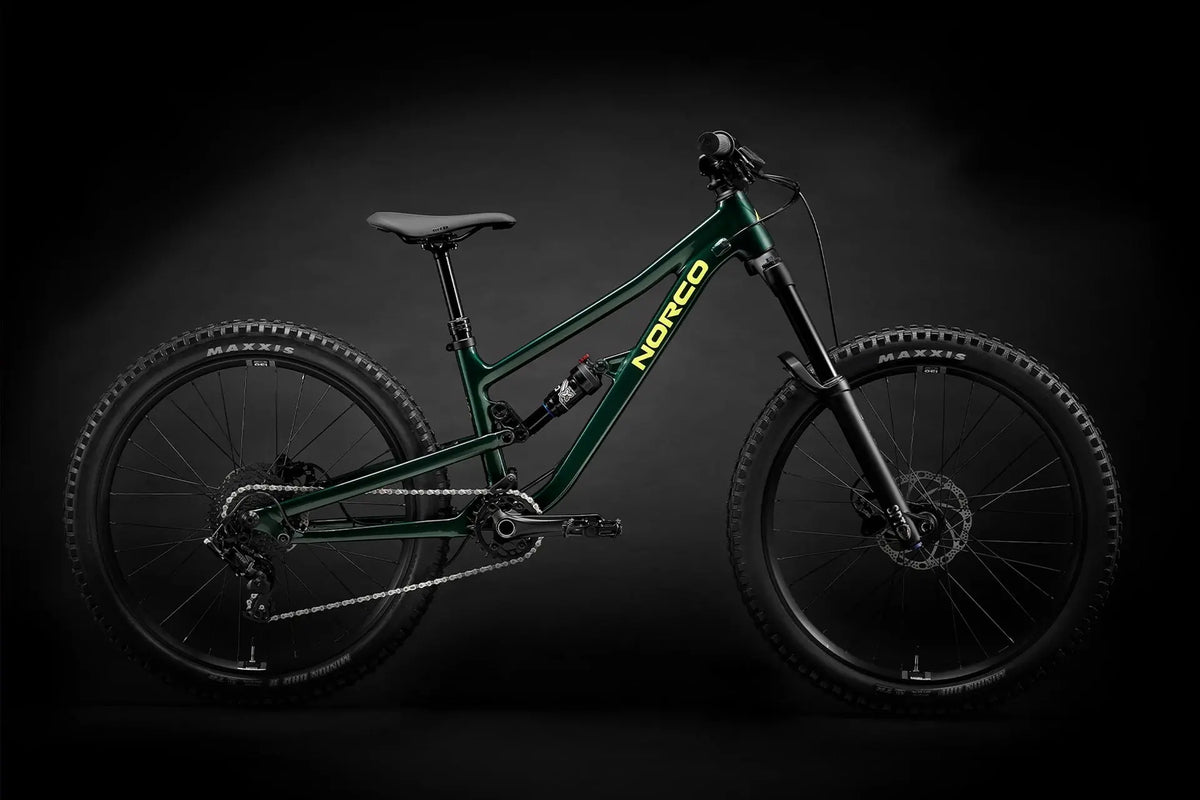

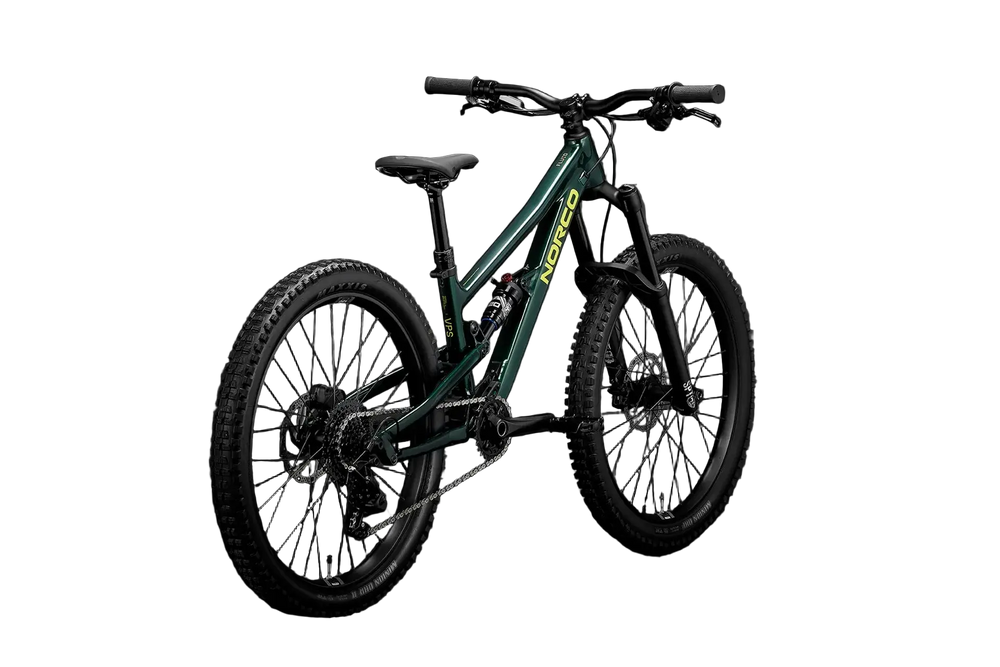

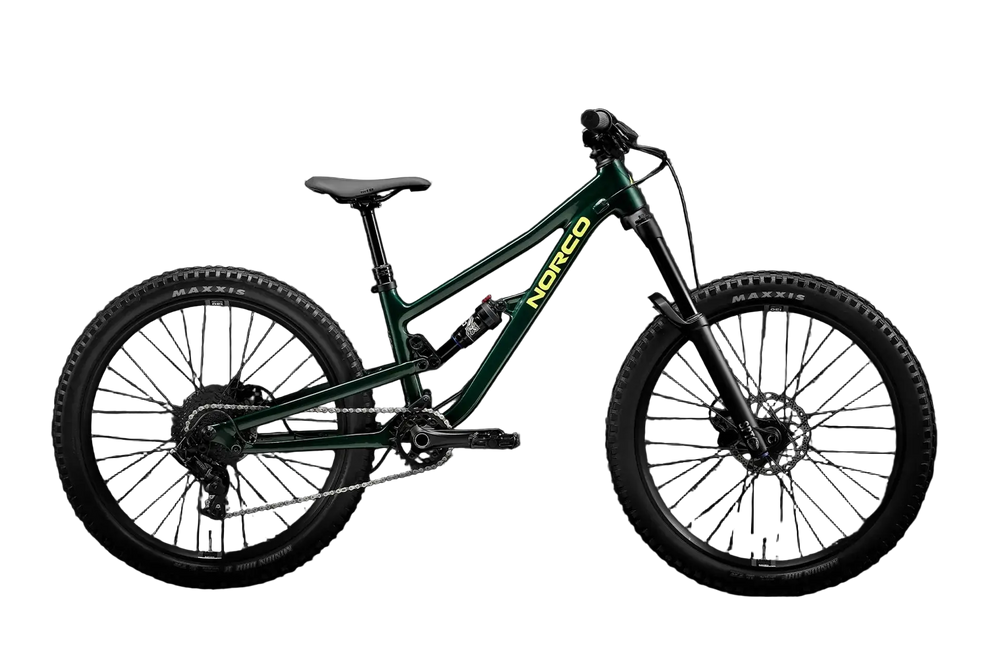

The quality of its construction reflects everything we have invested in our large-format bikes. So you know that the new Fluid FS for kids will perform well on any trail and that its quality parts will help you avoid the repair shop.

FEATURES:

Frame:

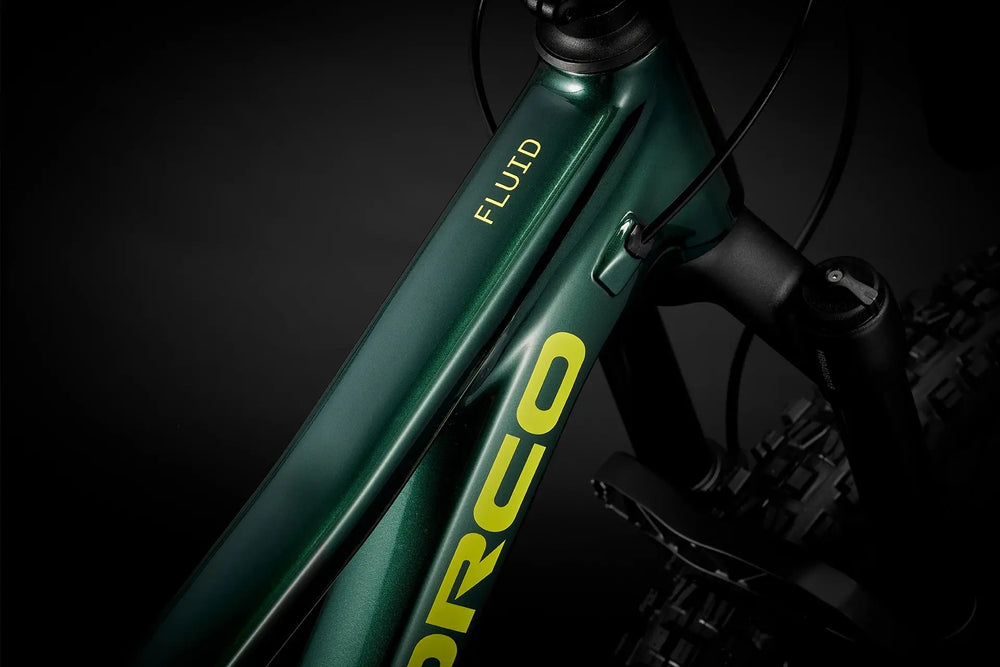

• Frame: 6061 Alloy, 120mm Travel, UDH, Ride Aligned™

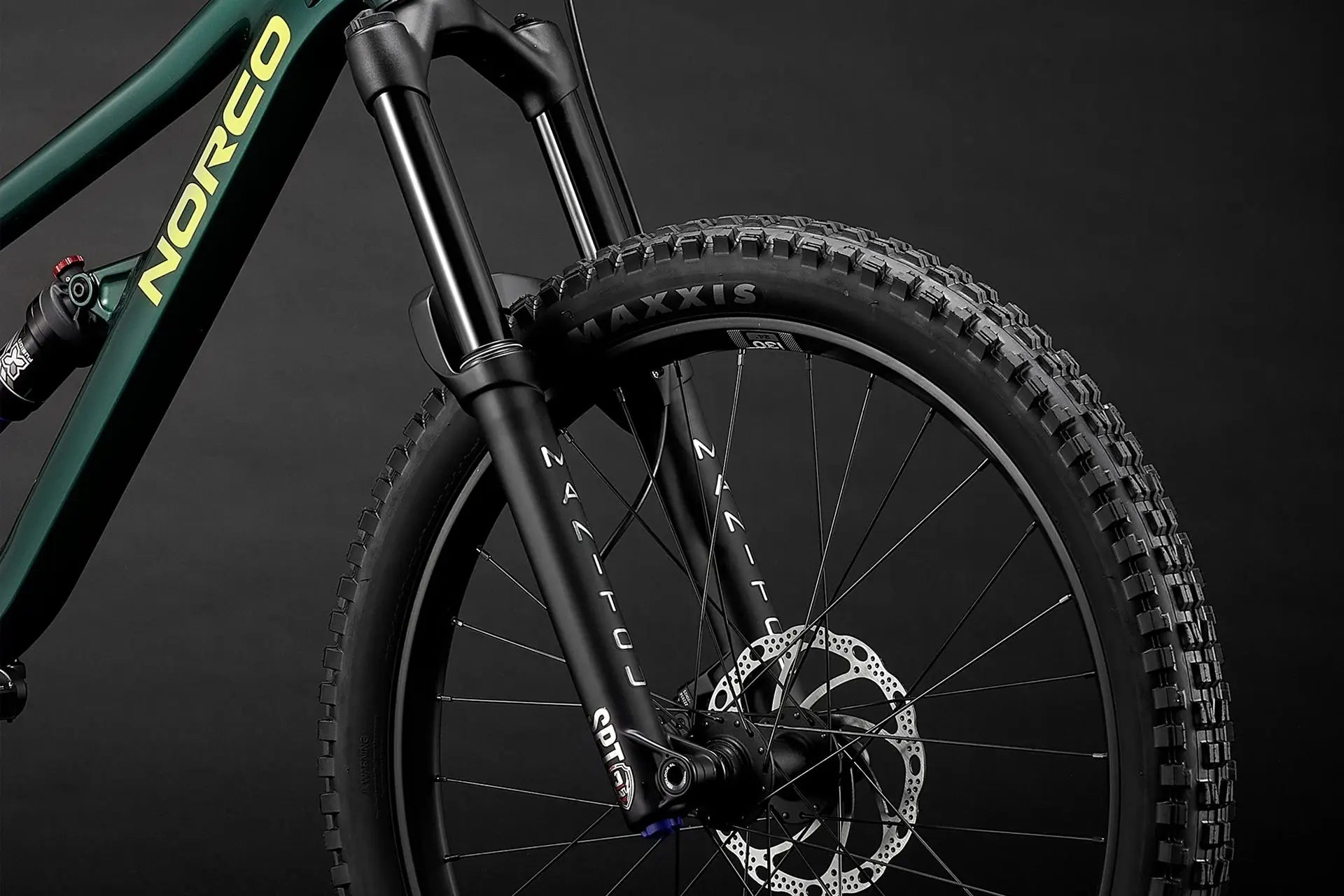

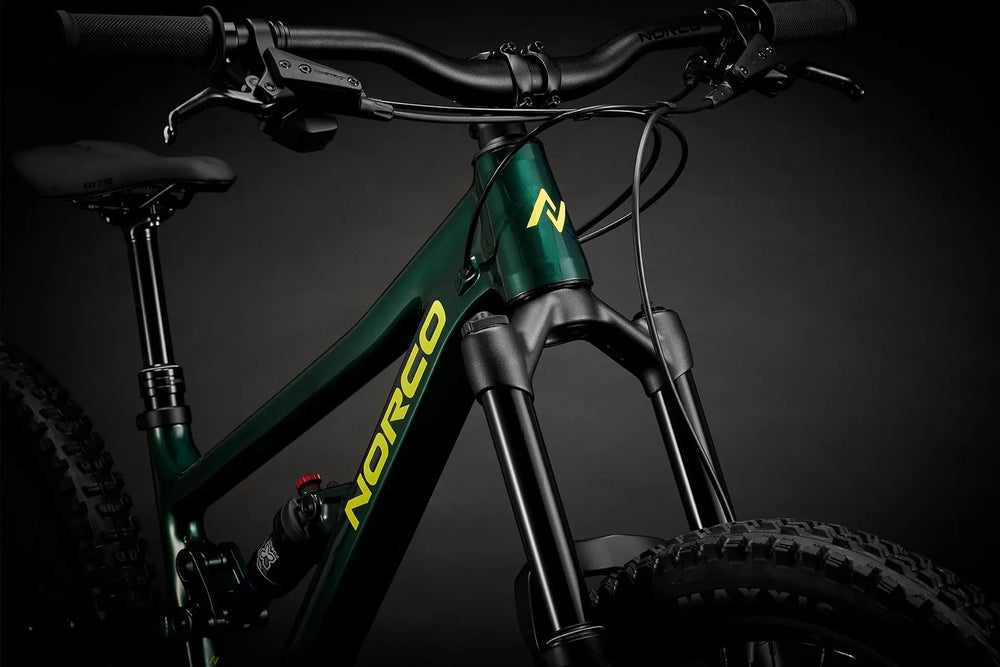

• Fork: Manitou JUNIT Sport 24", 145mm Travel, 42mm Offset, alloy stanchion
• Shock: X-Fusion 02 Pro R, 170x35mm Standard, A-Tune Soft

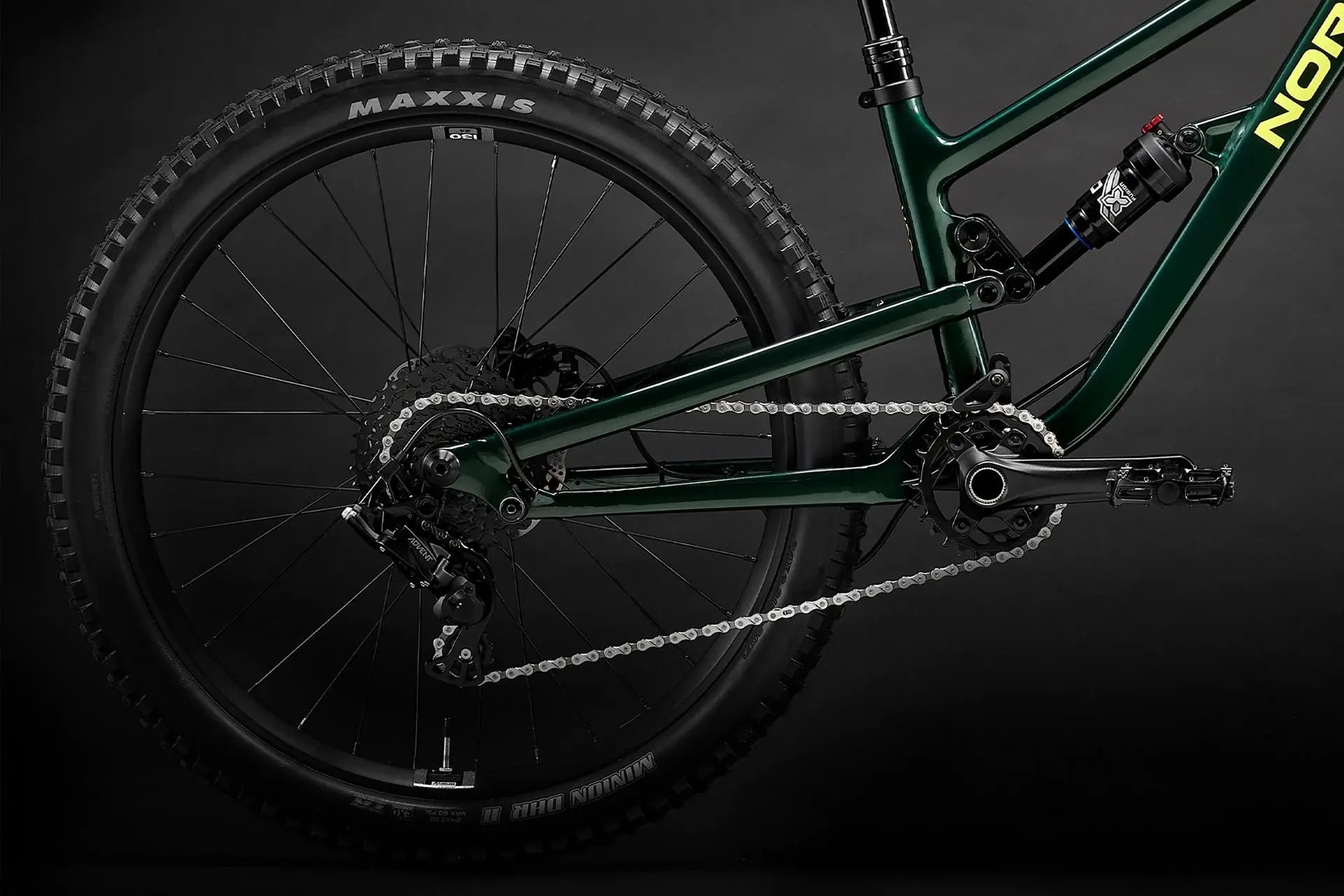

Drivetrain:

• Rear Shifter: microSHIFT Advent, 9spd
• Rear Derailleur: microSHIFT Advent, 9spd, Short Cage Clutch
• Crankset: Prowheel Junior Alloy, 28T, 140mm
• Bottom Bracket: Prowheel Cartridge BB
• Cassette: microSHIFT Advent, 11-38T, 9spd
• Chain: KMC X9, 9spd

BRAKES:

• Front Brake: Tektro HD-J285, 2-Piston, Resin Pads, 2-finger lever blade
• Front Rotor: Tektro TR160-22, 160mm, 6-bolt
• Rear Brake: Tektro HD-J285, 2-Piston, Resin Pads, 2-finger lever blade
• Rear Rotor: Tektro TR160-22, 160mm, 6-bolt
• Brake Levers: Tektro HD-J285

Components:

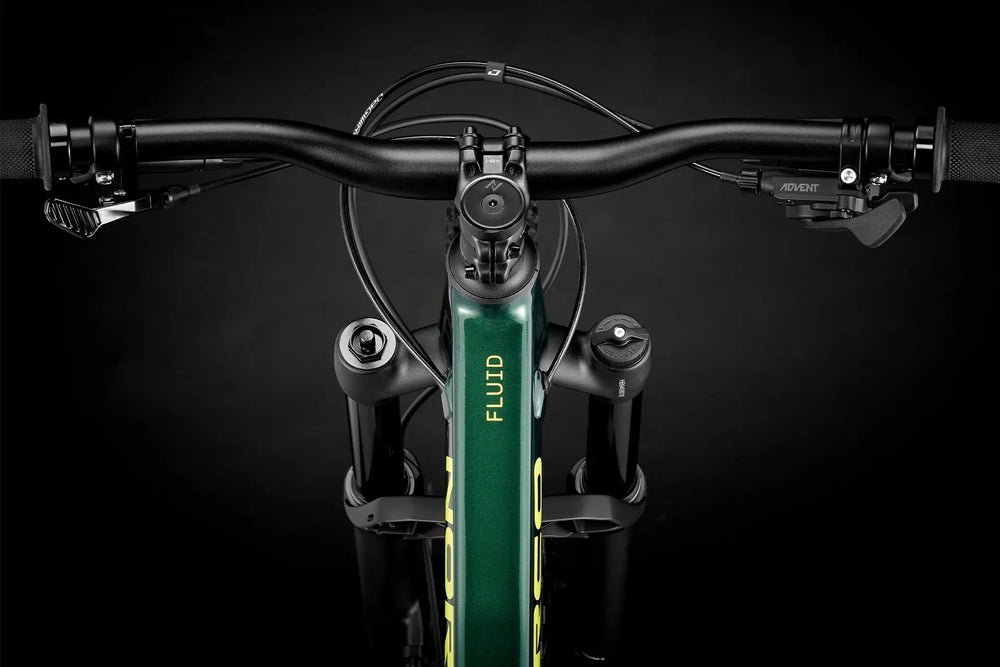

• Handlebar: Norco 6061 Alloy DB, 660mm, 20mm rise
• Stem: Norco 6061, 35mm Length, 31.8mm Clamp
• Seatpost: TranzX YSP18BKL, 31.6mm, 100mm, Kids Tune
• Headset: Tapered 1-1/8"-1.5", (ZS44/28.6 | ZS56/40)
• Saddle: WTB Solano Med, 142x240 mm, Steel Rails
• Grips/Bar Tape: Norco Youth Lockon, 115mm Length
• Seatpost Clamp: Norco Alloy Nutted Clamp, 34.9mm ID

Wheels:

• Front Hub: Formula DC-511, 15x110mm Boost, 32h, 6-bolt
• Rear Hub: Formula DC-3248, 12x148mm Boost, HG, 32h, 6-bolt
• Rims: WTB ST TCS 2.0, 27mm ID, 32H
• Front Tire: Maxxis Minion DHF, EXO, 24x2.4", Folding
• Rear Tire: Maxxis Minion DHR II, EXO, 24x2.3", Folding
