Information
Pine Mountain 1

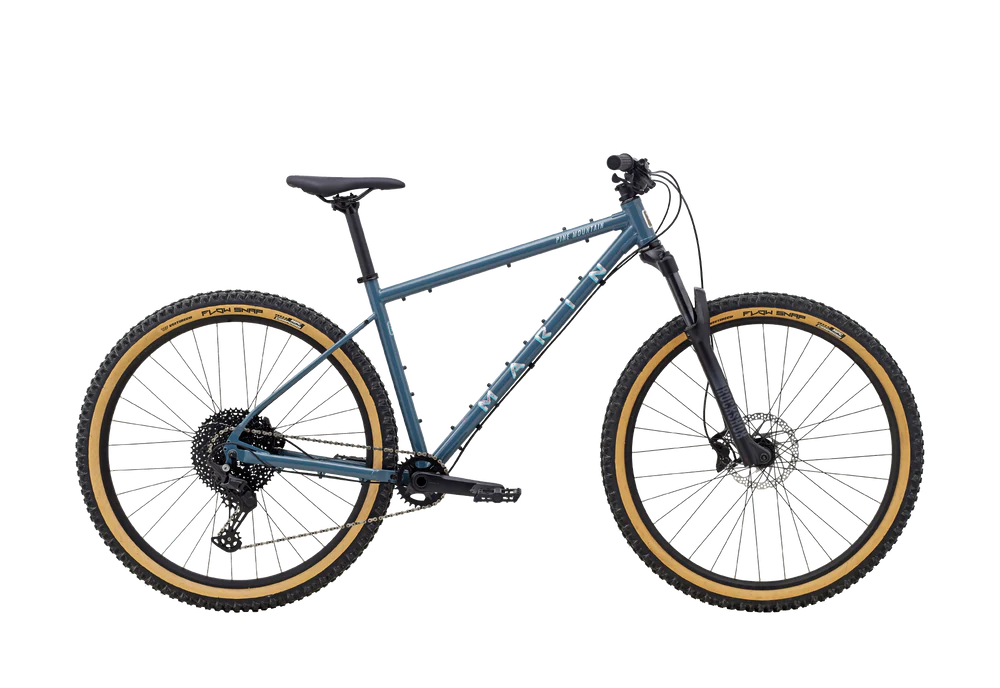

The Pine Mountain 1 is our affordable steel hardtail mountain bike designed for bikepacking. The Pine Mountain features a fully updated geometry, a Series 2 double-butted CrMo frame, and all the necessary racks for bikepacking. All this, combined with a 120mm RockShox Recon RL fork, a reliable and grippy 2.6” Vee Tire Co. Flow Snap tire, a Shimano shifting system, and our highly regarded Marin Bedroll handlebar.
Specifications
| Fork | RockShox Recon RL, 120mm Travel, Compression and Rebound Adjustment, Alloy Tapered Steerer, Solo Air Spring, 110x15mm Boost Spacing, Maxle Stealth, 51mm Offset |
| Frame | Series 2 Double Butted CrMo, 29" Wheels, Boost 141x9mm Open Dropout, 73mm Threaded BB, Plentiful Gear Mounts |
| Rim | Alloy Double-Wall, Offset Spoke, 32mm ID, Tubeless Compatible |
| Rear Hub | Forged Alloy, 141x9mm, Disc Specific, 32H |
| Front Hub | Forged Alloy, 110x15mm, Disc Specific, 32H |
| Spokes | 14g Black Stainless Steel |
| Tires | Vee Tire Flow Snap, 29x2.6", Wire Bead |
| Rear Derailleur | Shimano Deore, RDM5100, 11-Speed |
| Shifter | Shimano Deore, SLM5100, 11-Speed |
| Crankset | Marin Forged Alloy 1x11, Hollow Spindle, Steel Narrow Wide 32T Chainring |
| Bottom Bracket | External Sealed Cartridge Bearings |
| Chain | KMC X11 |
| Cassette | Shimano Deore, CSM5100, 11-Speed, 11-51T |
| Front Brake | Tektro HDM535, 4-Piston, Hydraulic Disc, 180mm Rotor |
| Rear Brake | Tektro HDM535, 4-Piston, Hydraulic Disc, 160mm Rotor |
| Brake Levers | Tektro |

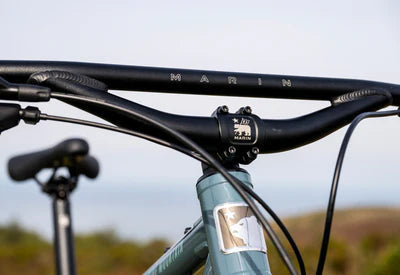

| Handlebar | Marin Bedroll Bar, 50mm Rise, 780 Width, 10° Backsweep, 6° Upsweep |
| Stem | Marin 3D Forged Alloy, 35mm |
| Grips | Marin Grizzly Lock On |
| Headset | FSA Orbit ITA, Sealed Cartridge Bearings, 1 1/8" x 1 1/2” |
| Seatpost | Marin Alloy, 30.9mm |
| Saddle | Marin Pine Mountain Trail |
| Pedals | Nylon Platform |
