Bikes have changed; racks should change too! We threw out the 1980s models (which everyone copies) and designed a rack that solves heel clearance and incompatibility issues that arise when trying to install traditional racks on modern bikes. Install a Streamliner® rack on almost any bike, then let your bike do the work for you. Construction:

• Hand-welded 10.2 mm 6061-T6 tubular aluminum.
• High-strength steel modular mounts.
• Durable scratch-resistant coating.

Mounting system:

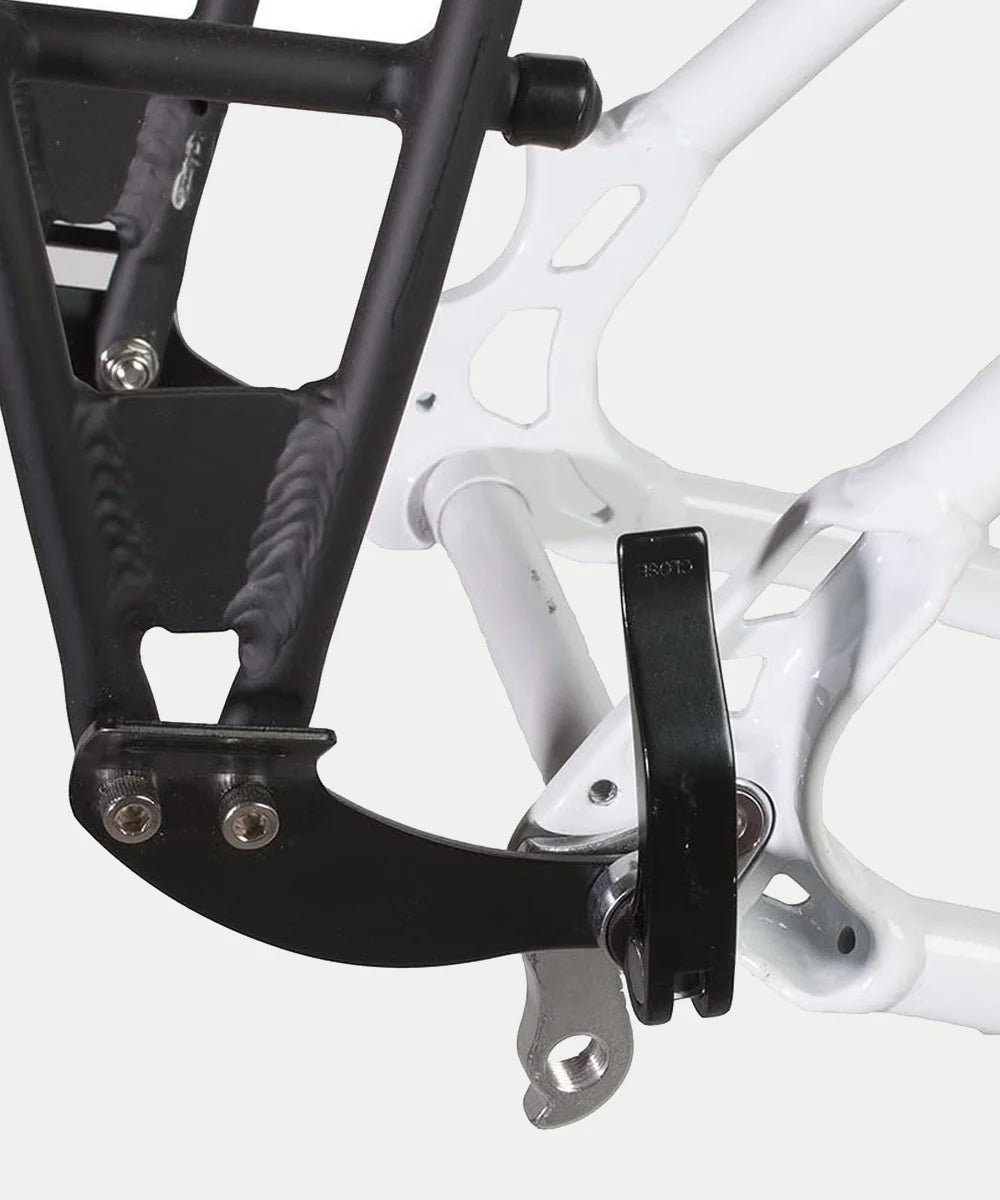

• Mounts that attach to a standard quick release* (not included) or traditional eyelets.

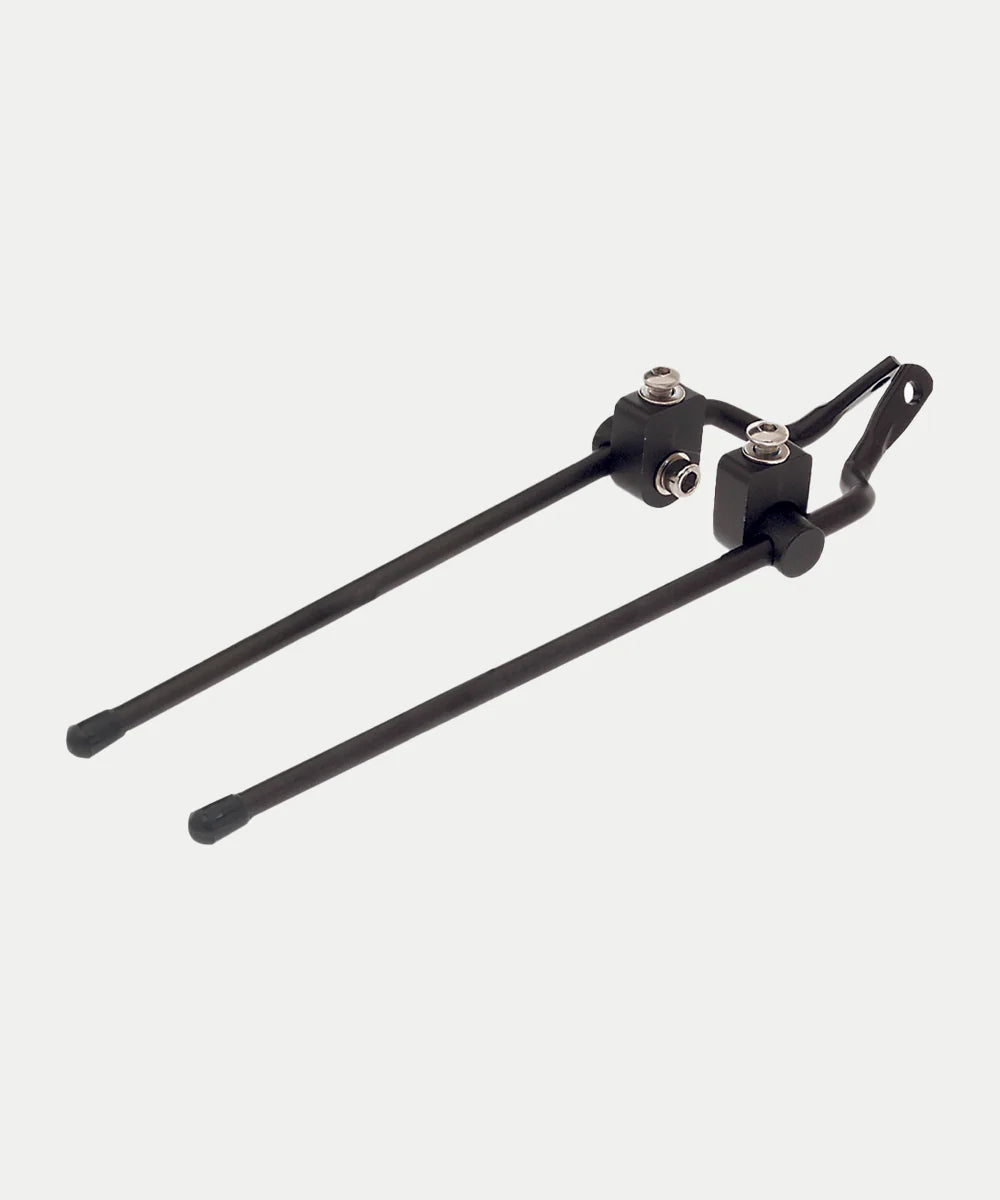

• Extra-long (280 mm) and adjustable Versalock® arms (for frames equipped with eyelets).
• The center support can be attached to a brake caliper or fender bridge.

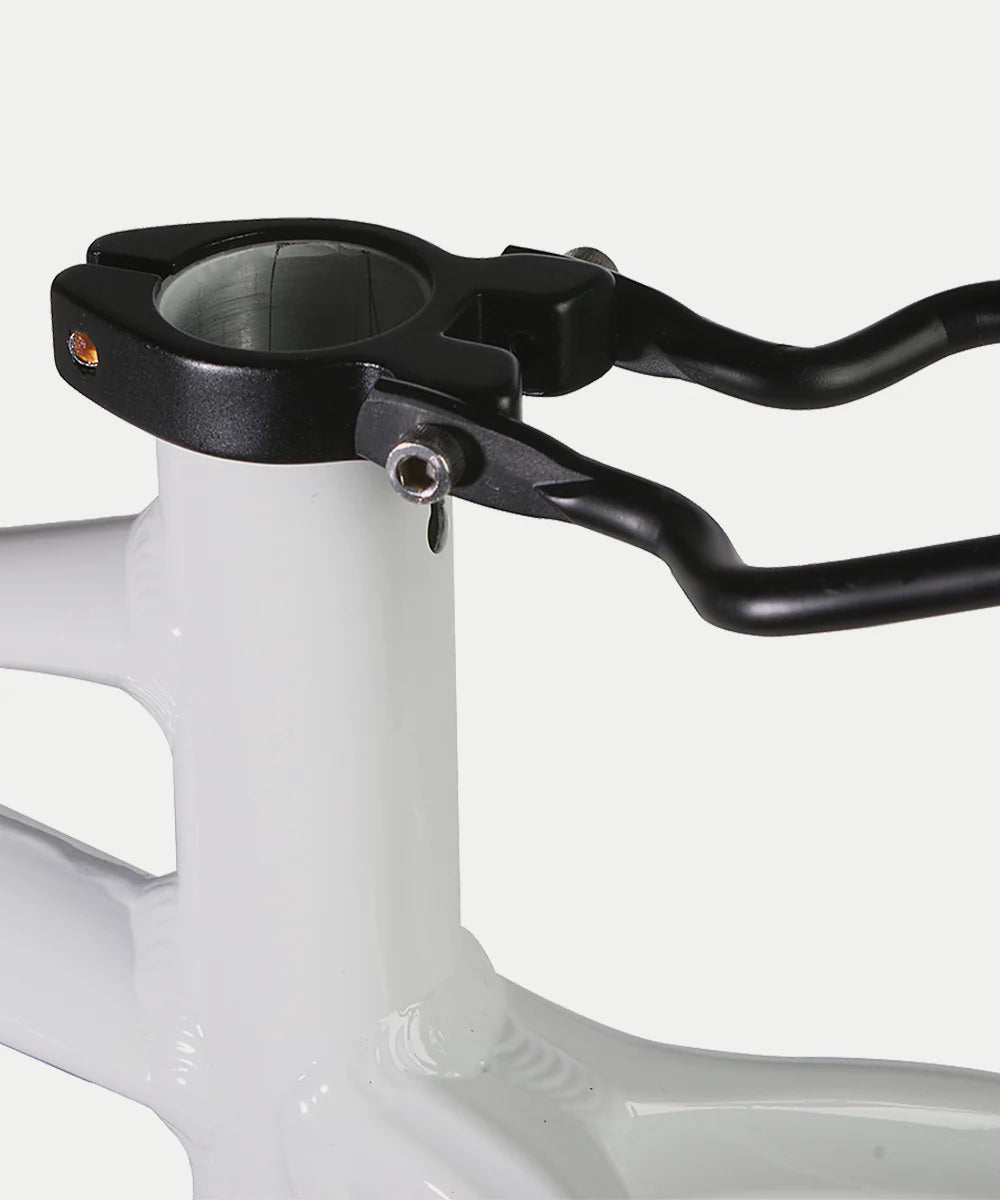

• The optional Trekk seatpost collar kit (255120-01~04) can be used to add upper eyelets to bikes that don’t have them.
• The optional nut axle kit (171356-17) can be used to equip bikes with nut axles. * Visit axiomgear.com for thru-axle solutions.

Features:

• Exceptional torsional stiffness.
• Not just designed for bikes with disc brakes.
• Compatible with all frame materials, including carbon.
• Attaches to a standard quick release or frame dropout eyelets.
• Streamlined shape that enhances bike aerodynamics and greatly improves handling by keeping your load close to the center.

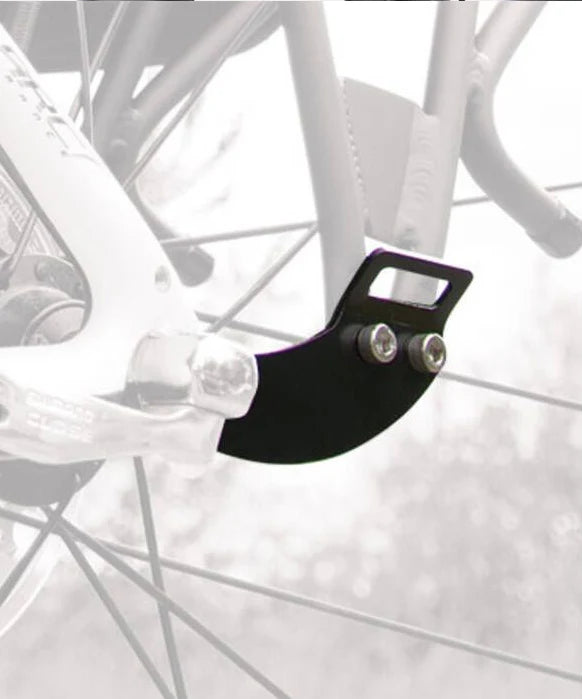

• Modular setback mounts that maximize heel clearance and fit disc brakes without adding excess width that could affect bike handling.
• 280 mm Versalock® arms long enough to fit even smaller bikes.
• Versalock® arms can be bent up to 30 degrees without compromising strength.
• To solve installation issues on certain bike types, Versalock® arms can be mounted under or on top of the rack platform.

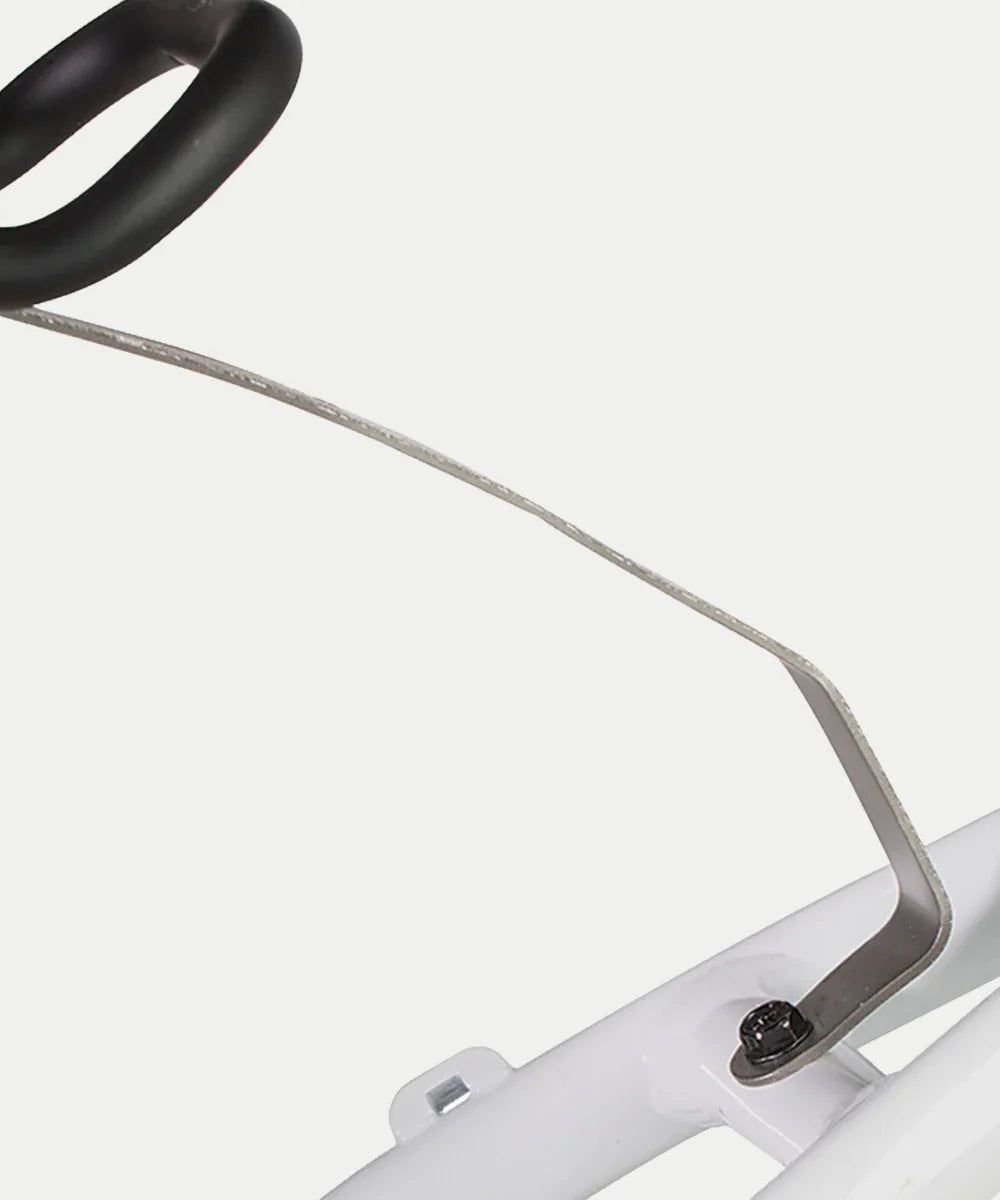

• The stainless steel center support can be bent to fit various frame types.

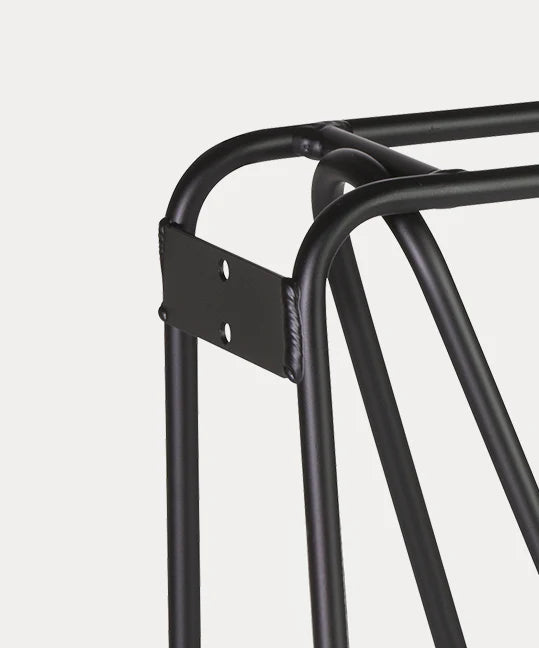

• Double welds increase strength and long-term durability.
• Rear mount bolts can be used as attachment points for a fender.
• Reflector/light mount, frame bolts included.
• Lifetime warranty.

Compatibility: 26", 27", 27.5", 28", 700c Mount length: 395 mm / 15.6" Platform dimensions: 355 mm x 100 mm / 14" x 4" Weight: 710 g / 1.56 lb (including hardware) Load capacity: 50 kg / 110 lb
