Information

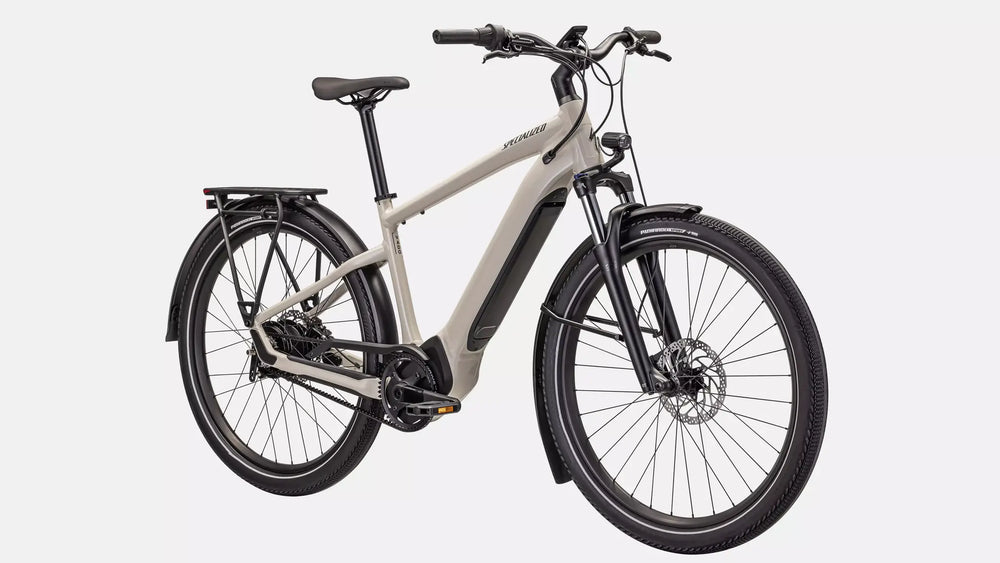

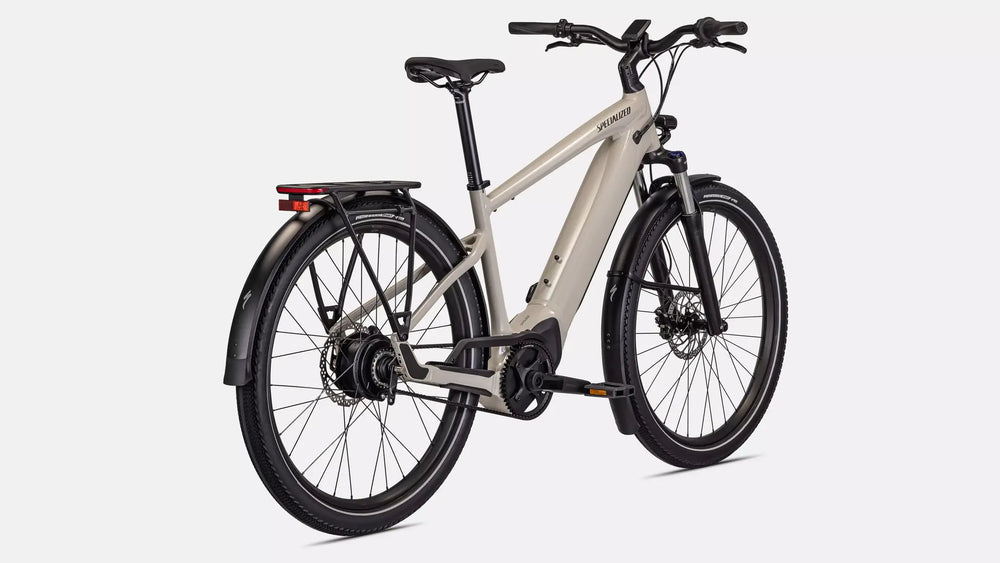

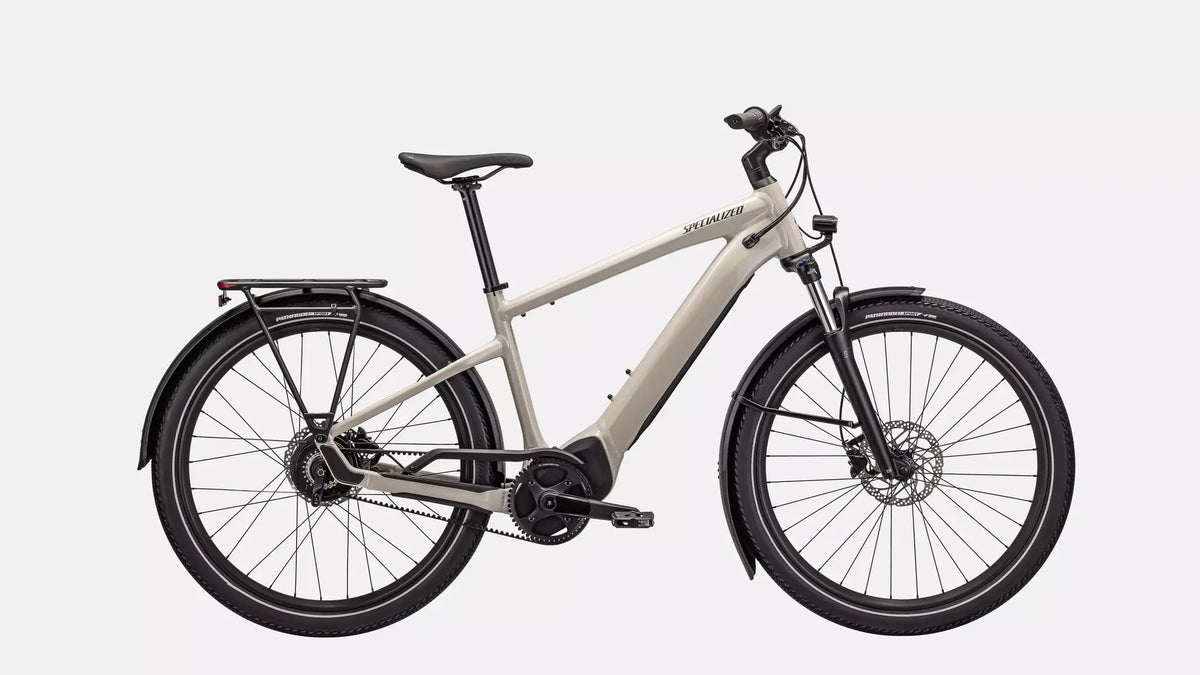

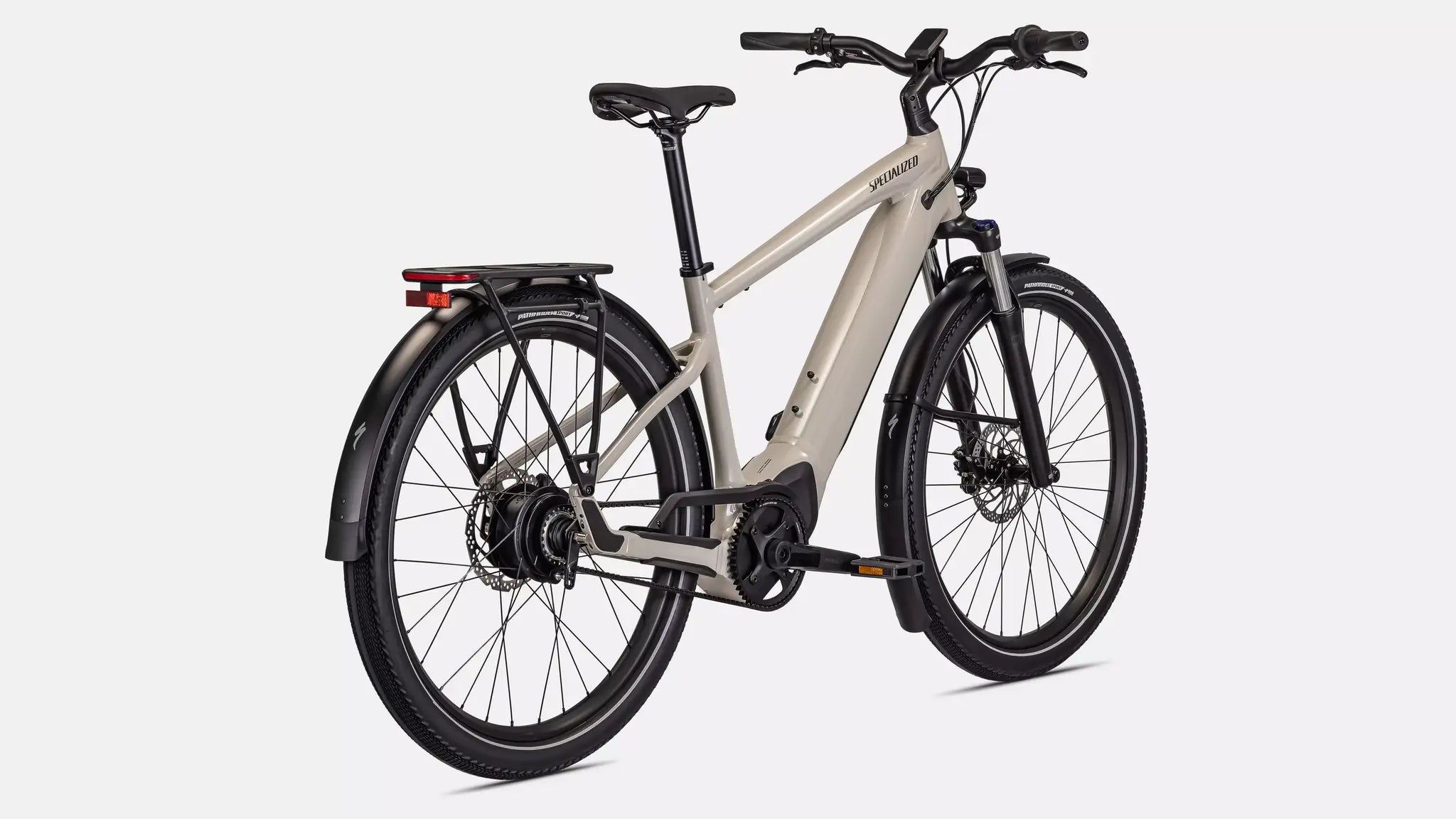

Providing an ideal riding comfort experience, the Vado is designed to confidently tackle the varied environments you encounter daily. It’s an excellent means of transportation that will encourage you to ride more often.
The redesigned geometry places you in an efficient position while comfortably keeping your eyes focused on the road. We have drawn lessons from the speed sought by a road cyclist and the handling needed by a mountain biker. Your body position on the Vado inspires confidence and, at the same time, optimizes your pedaling ability to move efficiently from point A to point B.
FEATURES:
E-Bike:
- Motor: Specialized 2.0E, 50Nm torque, custom tuned motor, 250W nominal
- Battery: Specialized U2-530, alloy casing, state of charge display, 530Wh
- User control: MasterMind TCD, with handlebar remote, built-in anti-theft feature, Bluetooth® connectivity, customizable display pages
- Wiring harness: Custom wire harness
- Charger: Custom charger, 42V4A with Rosenberger plug, 100-240V
Frame:
- Frame: E5 Aluminum, bottom bracket motor mount, fully integrated & lockable downtube battery, internal cable routing, lock and front rack mount, sliding dropout
- Seat collar: Alloy, bolt-type, 34.9mm
- Fork: SR Suntour MobieA32, 80mm travel, lockout, fender mounts, integrated light mount
Brakes:
- Front brake: Shimano BR-MT200, hydraulic disc, 180mm Centerlock
- Rear brake: Shimano BR-MT200, hydraulic disc, 180mm 6-bolt
Drivetrain:
- Shifter: enviolo Twist Display Pure
- Rear derailleur: enviolo CVP Multi-Turn
- Cassette: Gates Carbon Drive CDC 24t sprocket, silver
- Chain: Gates Carbon Drive CDX 122t belt, black
- Crankarms: Custom alloy forged crankarms
- Chainrings: Gates Carbon Drive CDC 50T chainring, black
- Chain guard: Custom chaincover
Wheels:
- Rims: 650b disc, double-wall alloy, pinned, 32h
- Front hub: Shimano MT400, Centerlock, 15x100mm, 32h
- Rear hub: enviolo CITY, 310% range, 6-bolt, 10x135mm, 32h
- Spokes: DT Swiss Industry
- Front tire: Pathfinder Sport Reflect, 650Bx2.3
- Rear tire: Pathfinder Sport Reflect, 650Bx2.3
- Tubes: Schrader, 40mm valve
Cockpit:
- Stem: Specialized Flowset, 3D-forged alloy, 20-degree rise, 31.8mm clamp

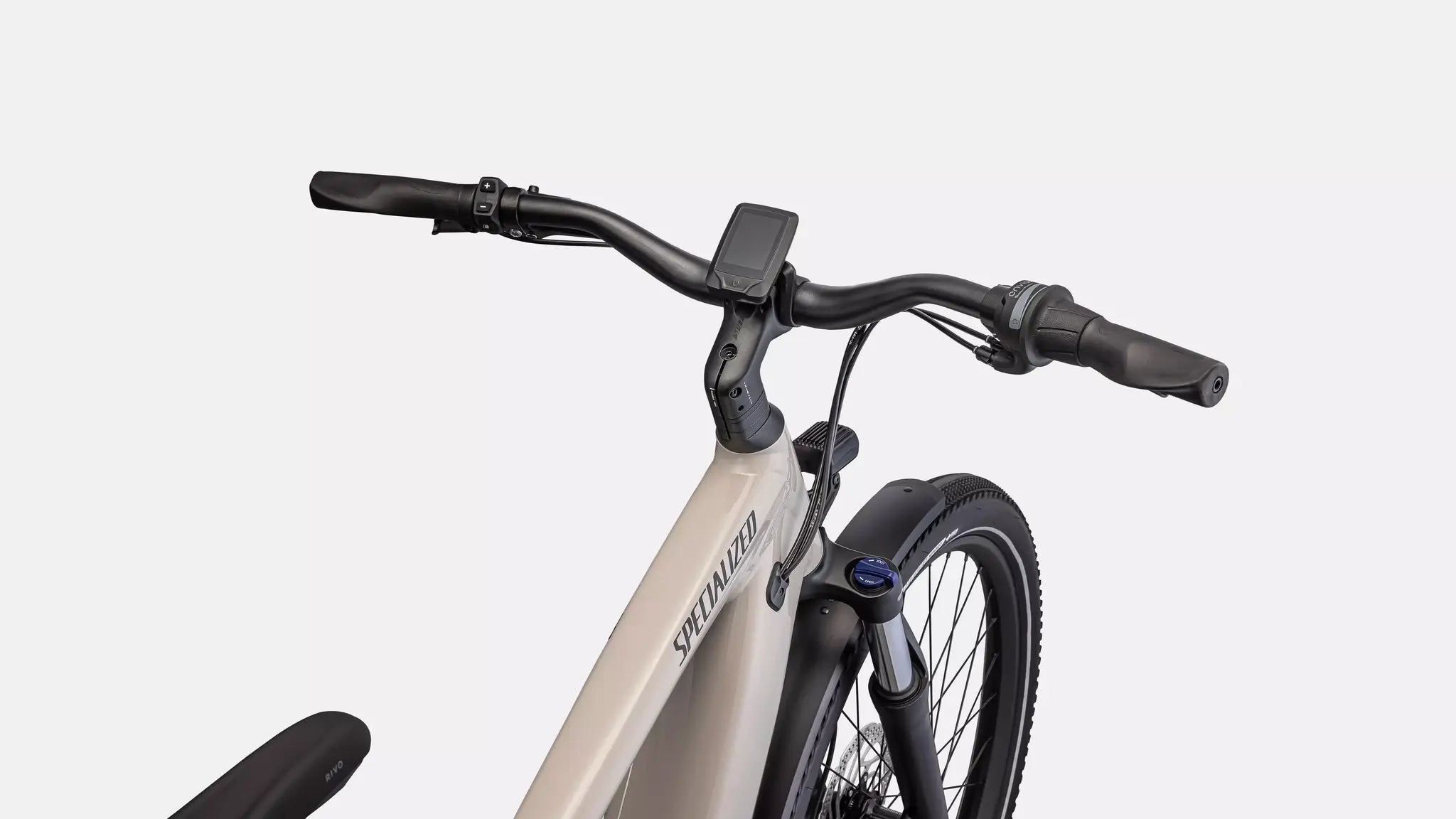

- Handlebar: Specialized, alloy, 15-degree backsweep, 46mm rise, 31.8mm
- Grips: Specialized Body Geometry Contour, lock-on

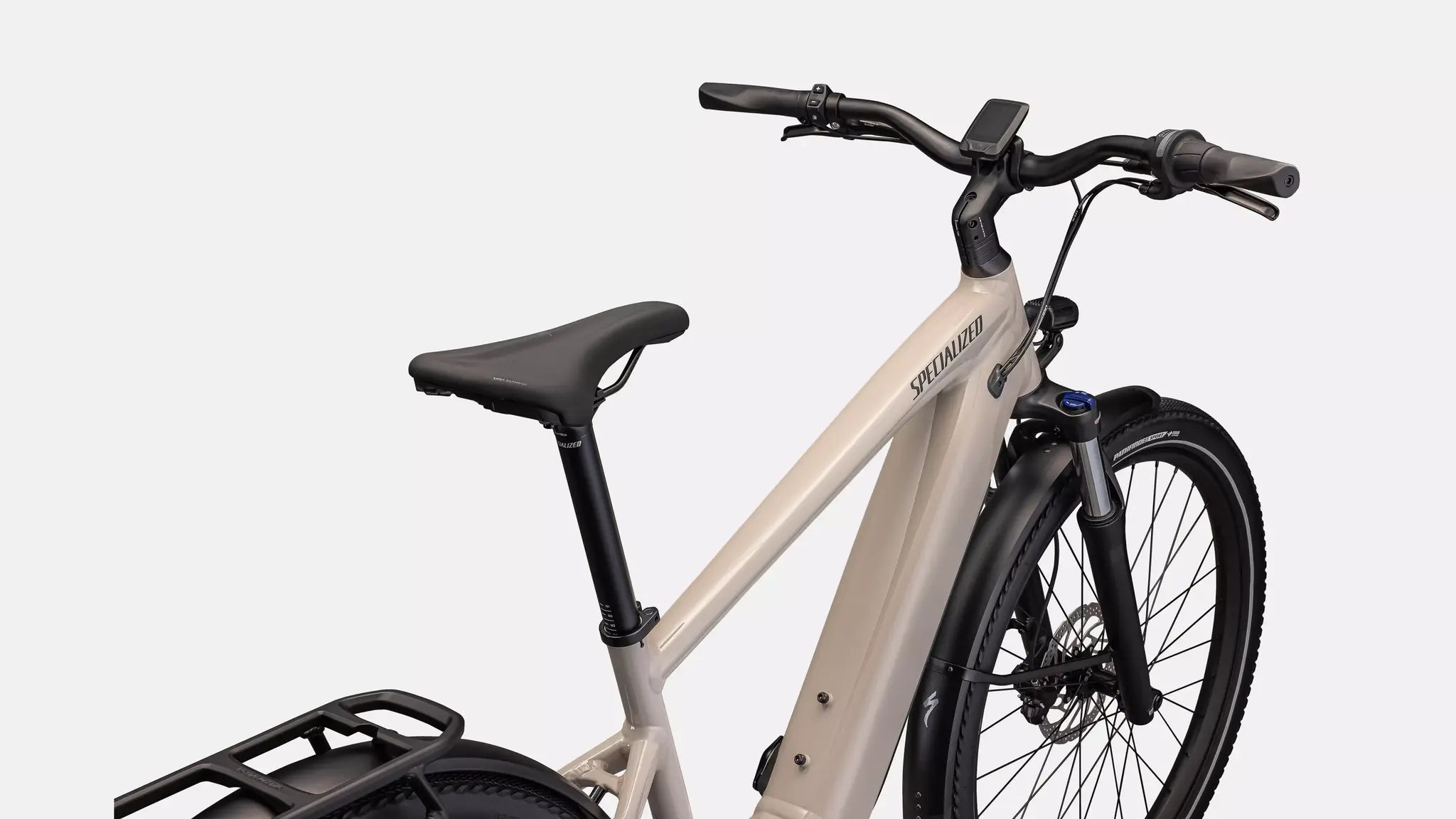

- Saddle: Rivo Sport, steel rails, 155mm
- Seatpost: Specialized, 6061 alloy, 2-bolt clamp, 0mm setback, 30.9mm
Accessories:
- Pedals: Specialized Commuter with grip tape & reflectors

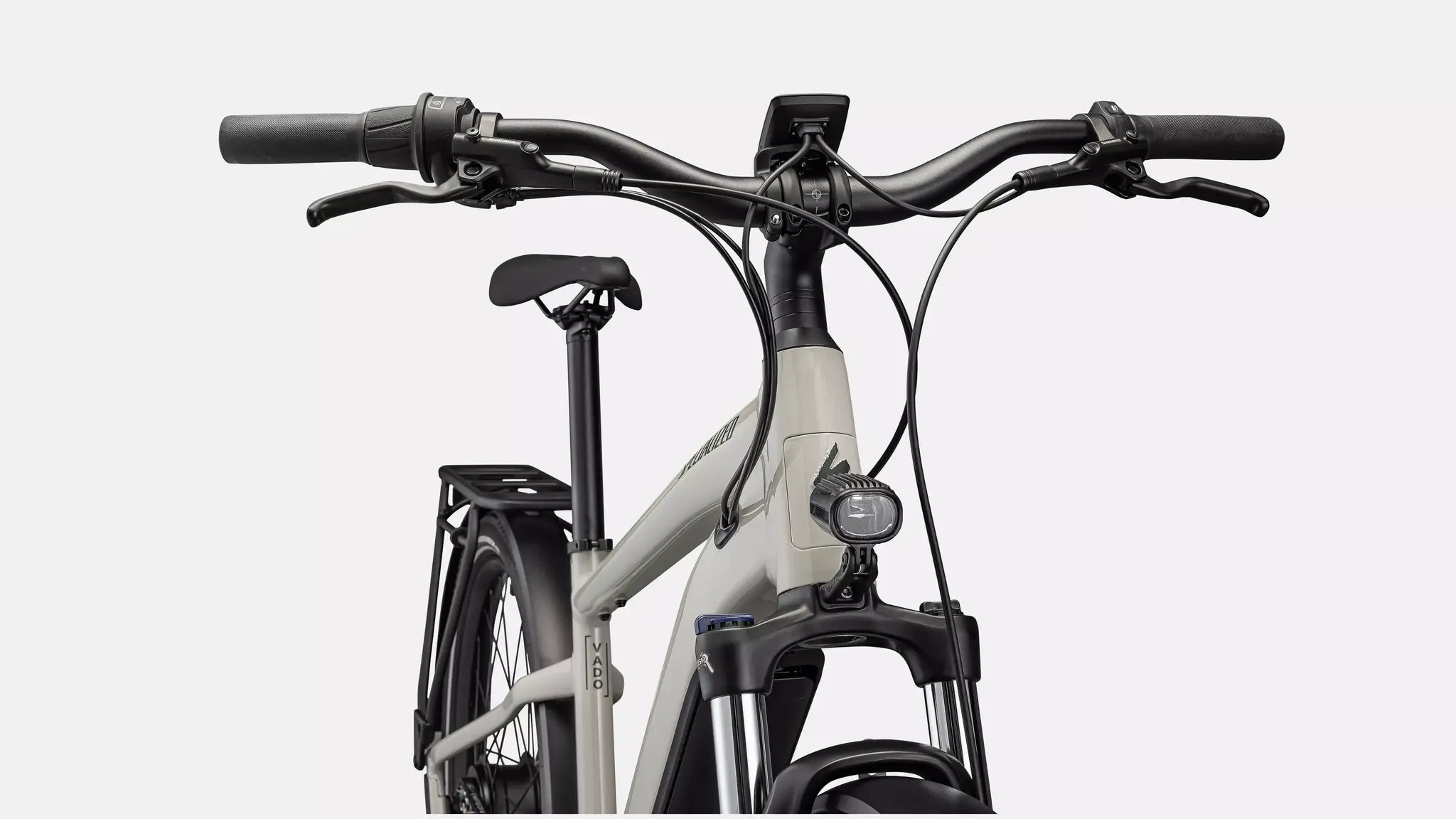

- Front light: Lezyne EBIKE MINI STVZO E65, 210 Lumens, 12V
- Rear light: Spanninga Commuter Glow XE, 12V

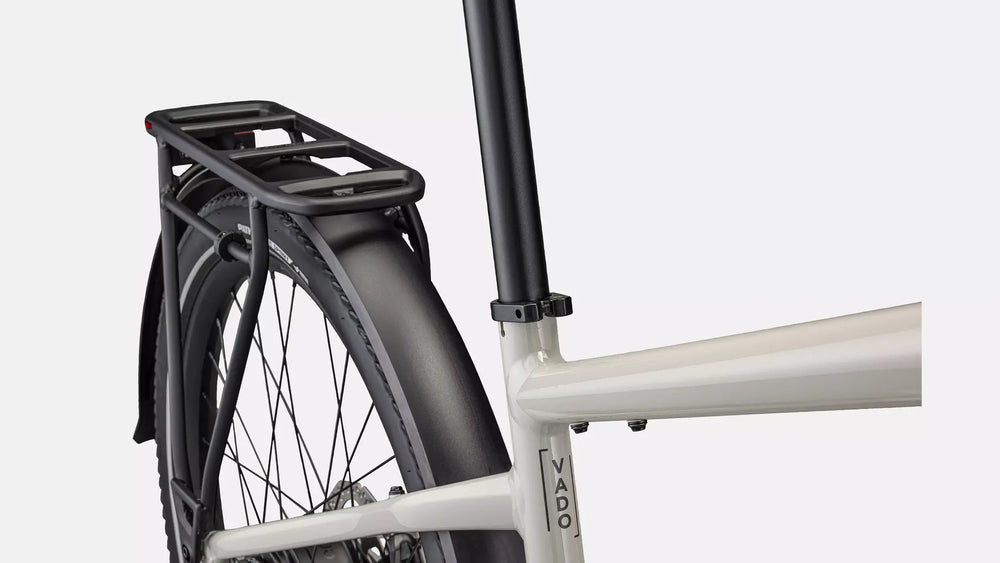

- Rack: Specialized rack, MIK HD interface, built-in pannier mounts, 27kg max load
- Fenders: Specialized DRYTECH fenders, 65mm width, aluminum fender stays
- Kickstand: Specialized kickstand, 40mm mount
- Bell: Simple bell
